EPRC-10EC太阳能路灯控制器

EPRC-10EC Solar Lighting Controller

EP Series Solar Light Controller EPRC10-EC

Rated Current：10A

System Voltage：12/24V Auto Work

Load work mode: Dusk to Dawn, Light ON+ timer, TEST, ON/OFF

EPRC10-EC series is a reliable and economical solar controller.

Features：

◆Intelligent System Optimum Control

◆12/24V auto work

◆High efficient Series PWM charging with temperature compensation

◆Use MOSFET as electronic switch, without any mechanical switch

◆Detects day and night using the PV array

◆Load and battery status indicators

◆Electronic protection: over charging, over discharging, overload, and short circuit

Application :

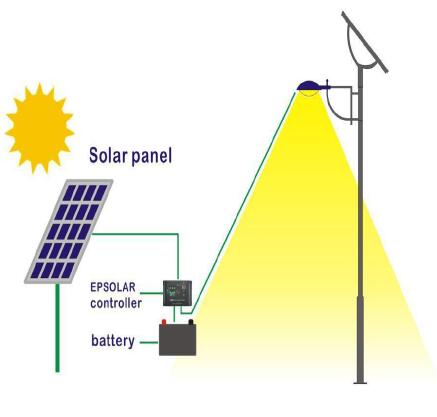

Ideal for off-grid solar lighting system that needs light and timer control

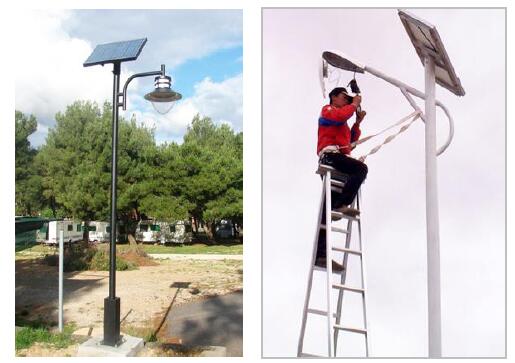

◆Solar street light system

◆Solar garden light system

◆Solar billboard

◆Solar detection equipment at night

Model selection:

EPRC10-EC 10A, 12/24V AUTO

Ideal for off-grid solar system up to 120W, 12V or 270W, 24V

Our Advantage :

◆Sophisticated R&D has over 20 years research experience

◆Professional technical and service team

◆Using world top class electronic components; all the components are industrial grade

◆High quality products with reasonable price; the failure rate is less than 2 per1000 pcs

◆Practical application in more than 120 countries

◆Expected 10 years lifetime

◆2 years warranty
