SHI Series Solar Inverter

Pure Sine Wave Inverter SHI series

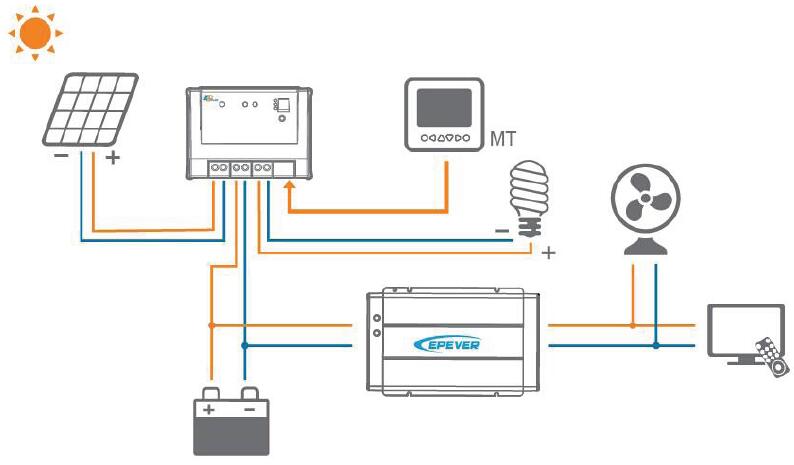

SHI series is a pure sine wave inverter which can convert 12/24/48Vdc to 220/230Vac 50/60Hz based on full digital and intelligent design. It features high reliability, high efficiency, concise outline, small volume, easy installation and operation. The inverter can be applied in many fields, such as household appliances, electric tools and industrial devices etc, especially for solar photovoltaic power system.

Features：

◆ Input & output fully isolation

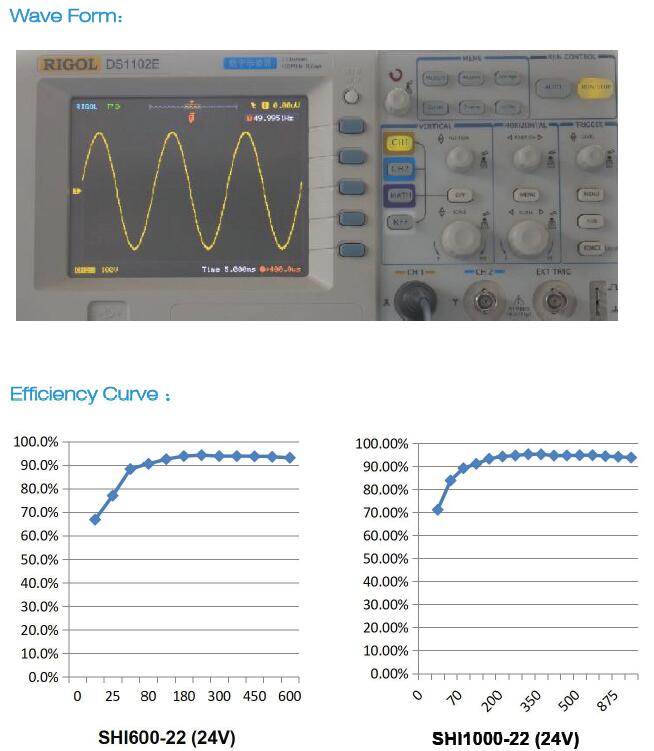

◆ Adoption of advanced SPWM technology, pure sine wave output

◆ Dynamic current loop control technology to ensure inverter reliable operation

◆ Wide DC input voltage range

◆ The output voltage and frequency can be switched

◆ Low output harmonic distortion（THD≤3%）

◆ LED indicators for input voltage range, load power range, normal output & failure state

◆ Optional energy saving mode

◆ Wide working temperature range (industrial level)

◆ Continuous operation at full power

Electronic protections:

◆ Output short circuit protection       ◆ Overload protection

◆ Input low voltage protection            ◆ Input over voltage protection

◆ Overheating protection                    ◆ Inverter abnormal protection
