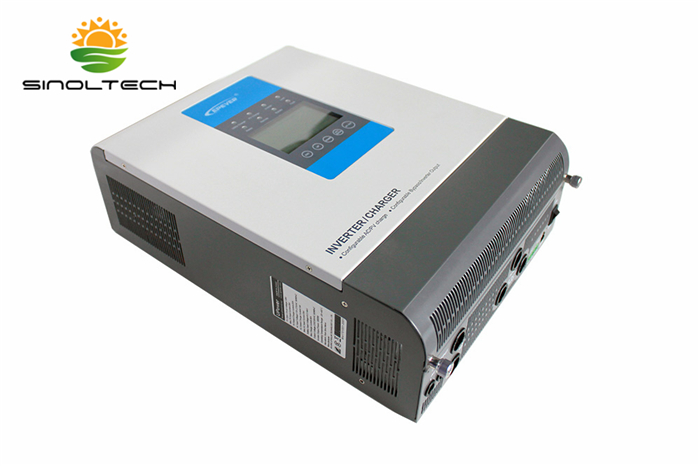

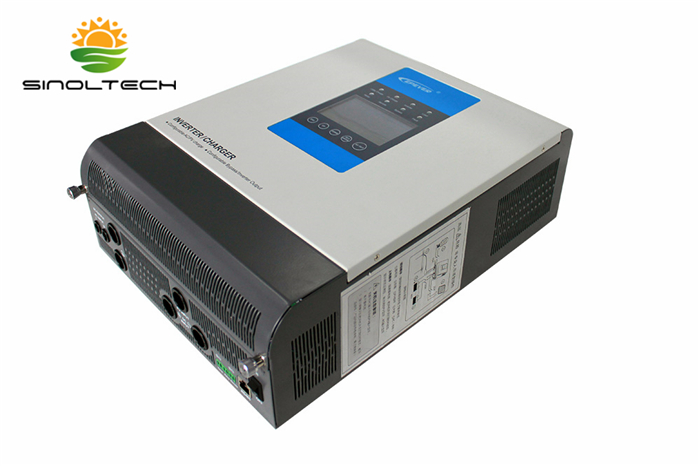

UPower SERIES Inverter/Charger

The UPower series is a new type of the inverter/ charger combining with solar & utility charging and AC output, which adopts a multi-core processor design and advanced MPPT control algorithm, and has the features of high response speed, high reliability and high industrialization standard. It offers four charging modes to Solar priority, Utility priority, Solar and Utility & Solar; two output modes for Battery and Utility, meeting the various application demands.

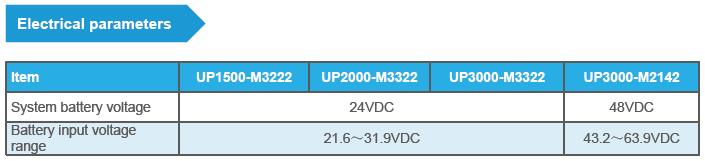

Product Models:

UP1500-M3222   UP2000-M3322

UP3000-M3322   UP3000-M2142

Features:

• Adoption of the advanced SPWM technology, with pure sine wave output
• Fully digitalized voltage and current double closed-loop control
• Advanced MPPT technology, with efficiency no less than 99.5%.
• Four charging mode: Solar priority, Utility priority, Utility & solar and Solar
• LCD design that enables dynamic display of system running data and operating state
• Two OUTPUT mode: Battery and Utility

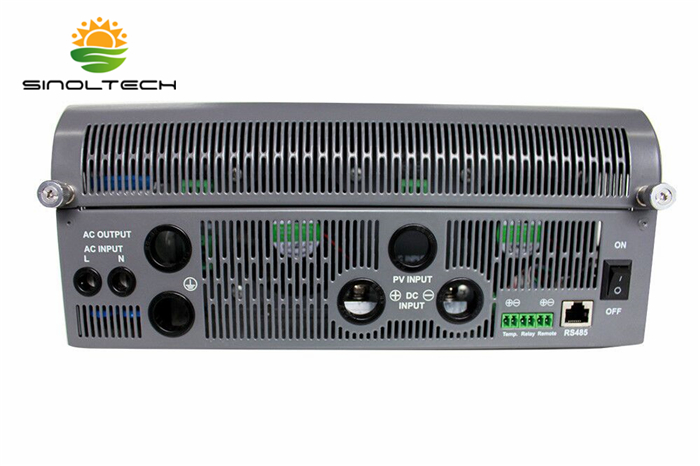

• Provided with common interface and advanced interface
• Multiple LED indicators that instantly indicate the operating state of the system
• 2P circuit breaker provided at the utility input end
• Independent control of AC output with AC OUT button
• Battery temperature compensation function.
• Extensive Electronic protection

Protection Function:

• PV Over Current protection                      • PV short circuit protection

• PV Reverse Polarity protection                  • Night Reverse Charging protection

• Utility input over voltage protection          • Battery over voltage protection

• Utility input under voltage protection       • Battery Over Discharge protection

• Load Short Circuit protection                    • Load Overload protection

• Device overheating protection
