MPPT太阳能控制器
- 产品编号：MPPT CONTROLLER
- 产品价格：
- 产品描述：MPPT solar controller can track the MPP point fast and accurately in any situation which will improve energy efficiency and obtain the maximum solar energy. It can fast and accurately MPP of photovoltaic array in any situation and obtain the maximum solar energy at any time, which remarkably improves energy efficiency.

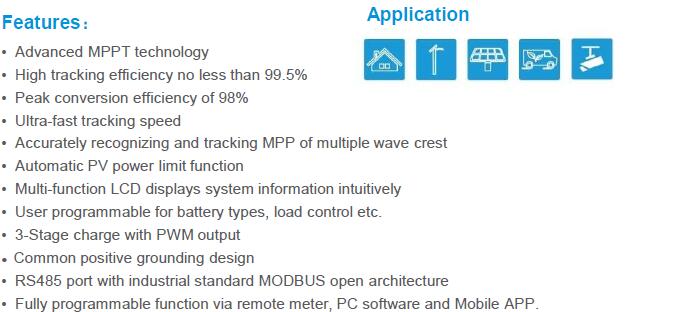

MPPT Solar Charge Controller
MPPT SERIES

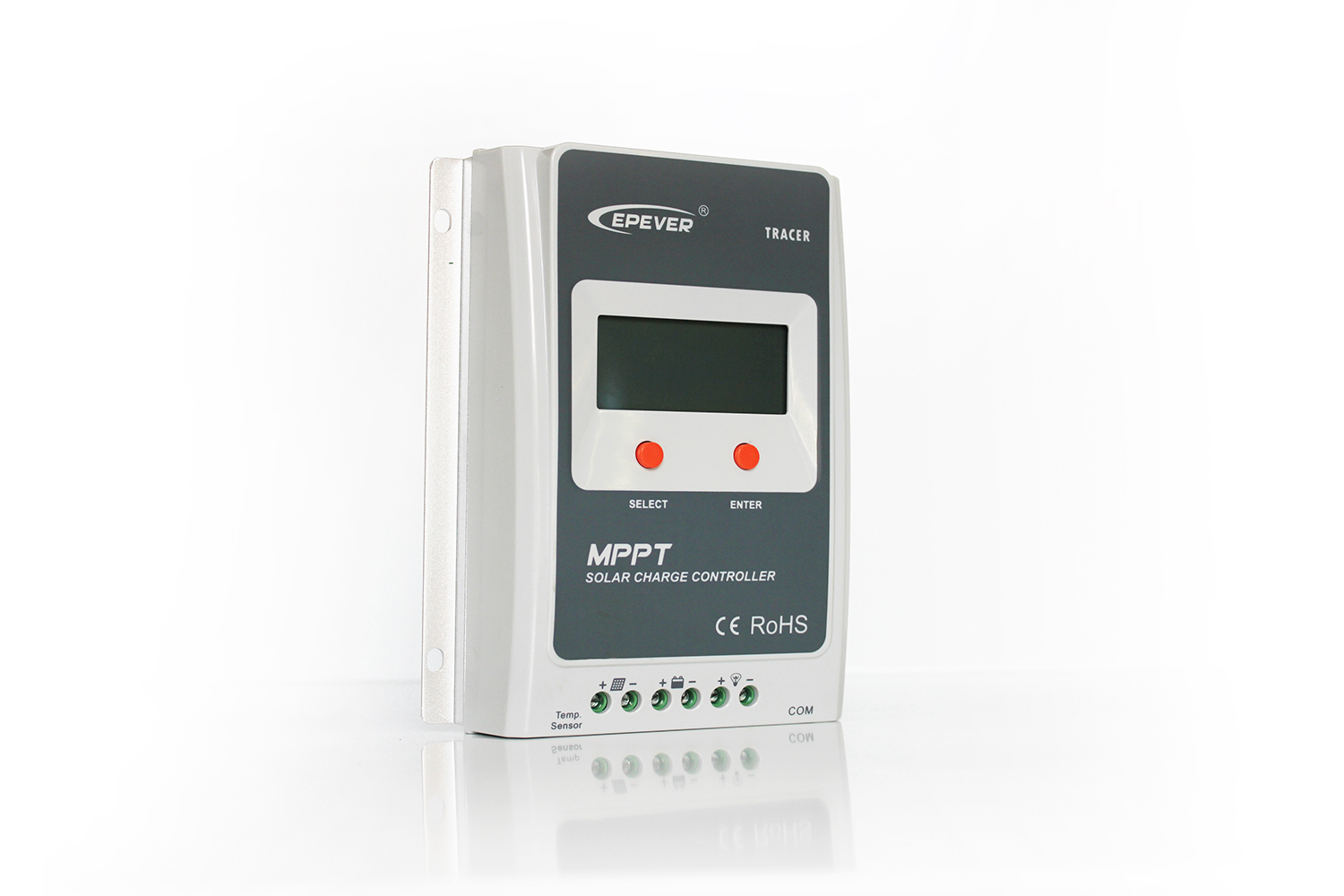

-TRACER A
MPPT solar charge controller

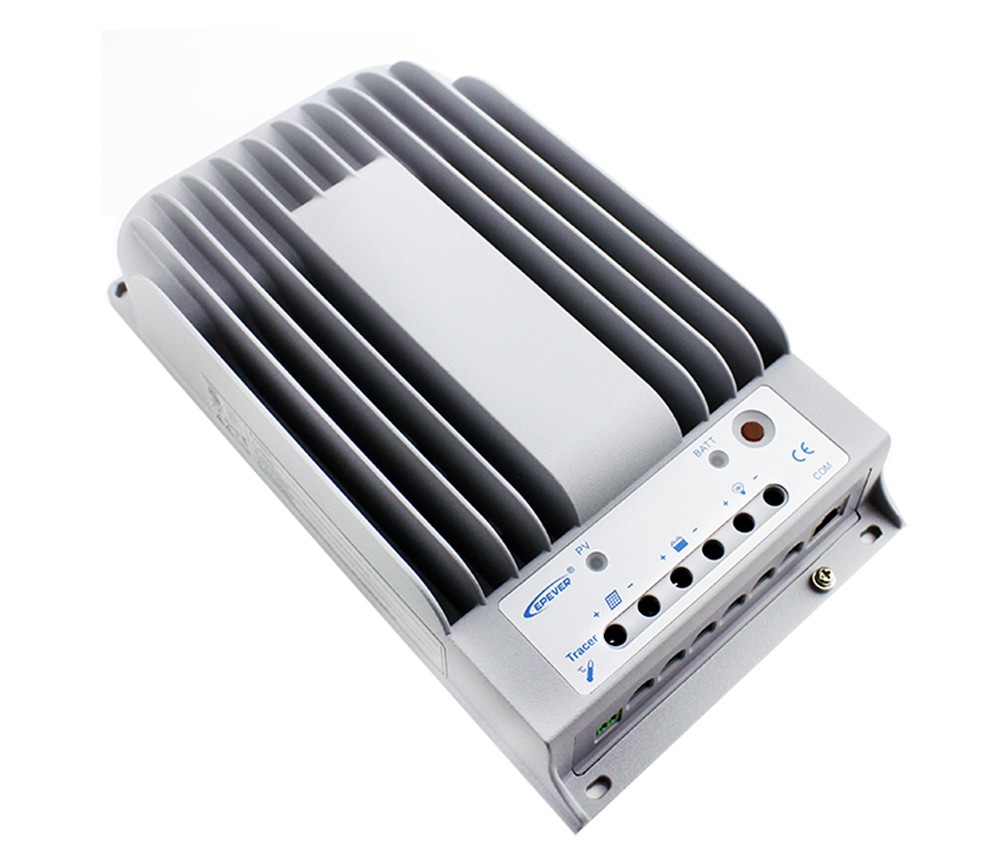

Tracer1210A/ Tracer2210A/ Tracer3210A/ Tracer4210A
Tracer A series adopts common positive design and advanced MPPT control algorithm. The products can track the MPP point fast and accurately in any situation which will improve energy efficiency and obtain the maximum solar energy.
It can fast and accurately MPP of photovoltaic array in any situation and obtain the maximum solar energy at any time, which remarkably improves energy efficiency. With Modbus communication protocol interface, it is convenient for user to expand applications and meet monitoring requirements in various fields like telecommunication base station, household system, lighting system etc.

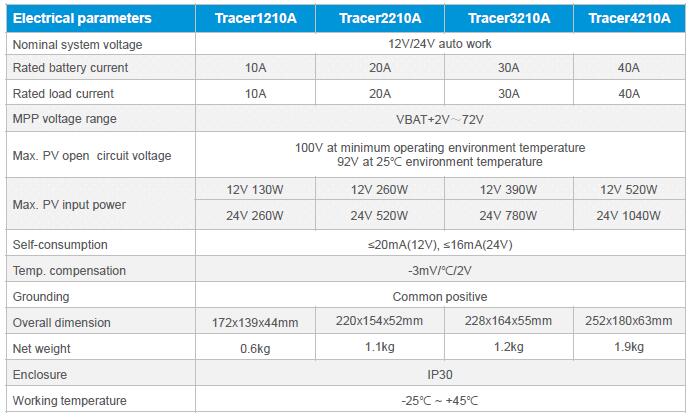

SPECIFICATION FOR TRACER-A SERIES MPPT SOLAR CONTROLLER:
-TRACER BN
MPPT solar charge controller
Tracer1215BN/ Tracer2215BN/ Tracer3215BN/ Tracer4215BN

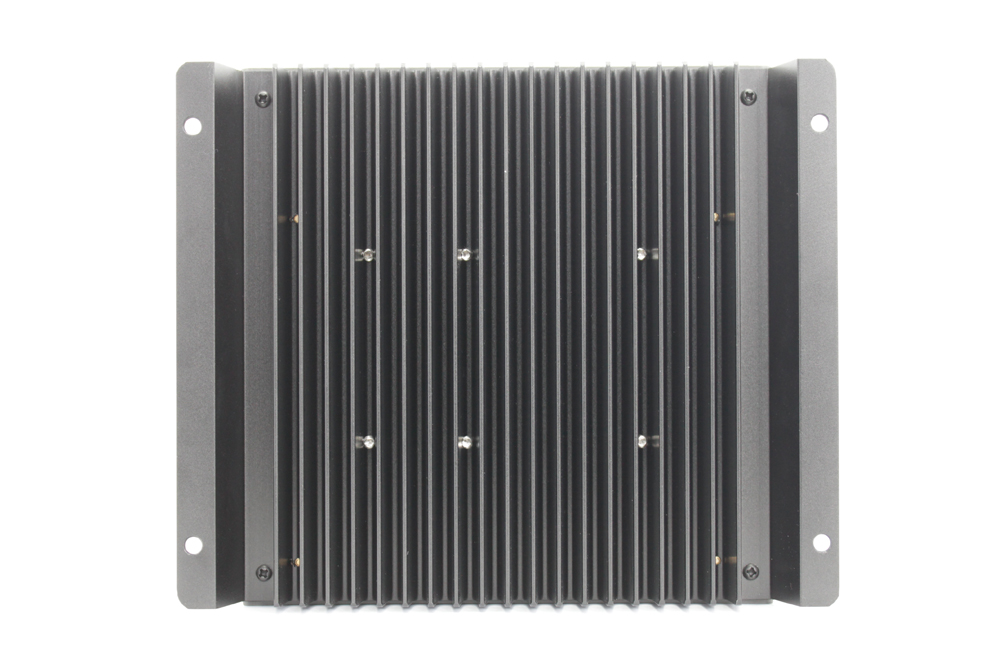

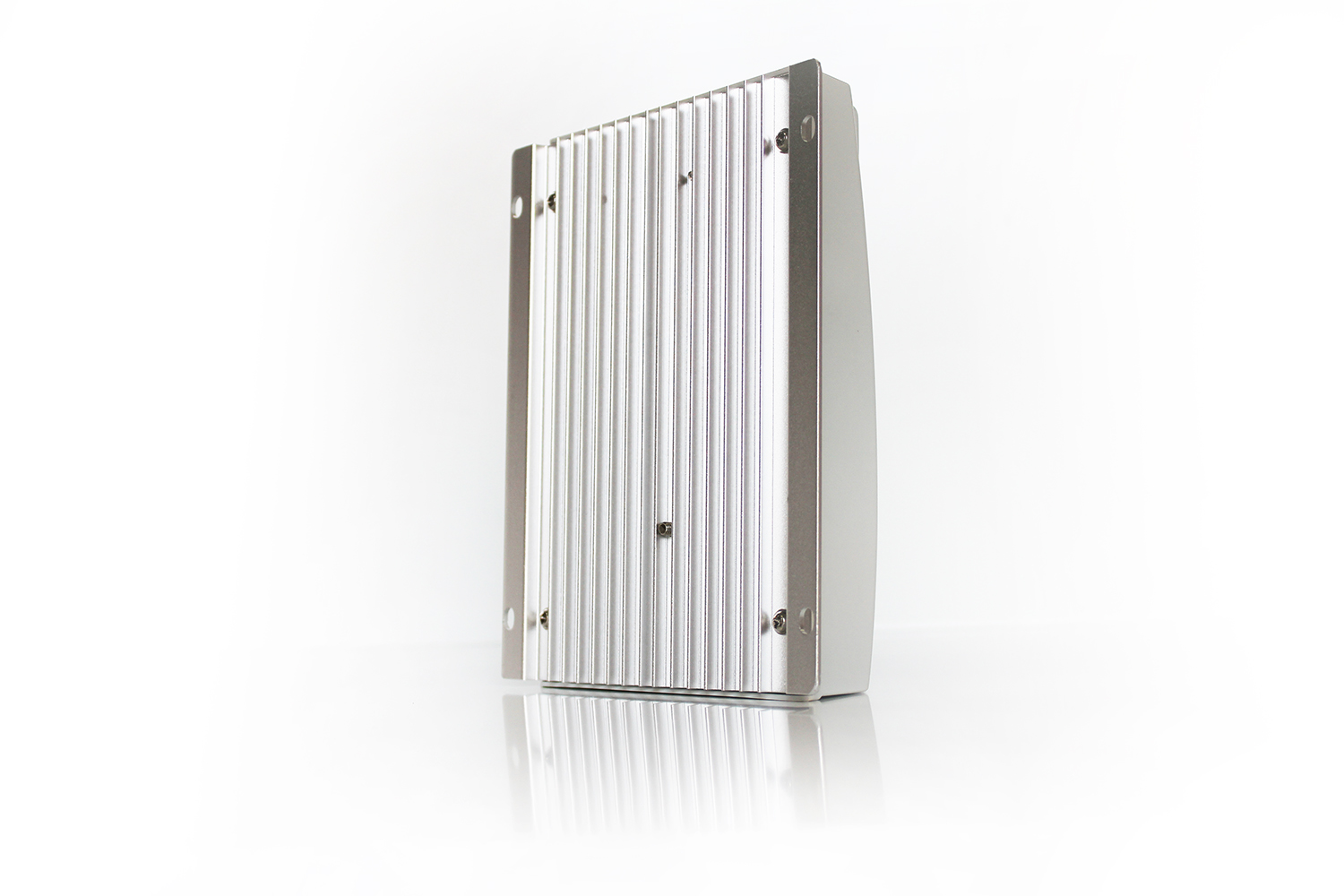

Tracer-BN Series is a flagship member among all tracer MPPT controllers. We design with very long lifespan industrial materials and die-cast aluminum housing cooling system, to improve the controller's performance and life.
FEATURES:
- Peak conversion efficiency of 98%
- High tracking efficiency ≥ 99.5%
- Die-cast aluminum design and nature cooling
- Diversified load control to meet different requirements
- Battery type selection: Sealed, Gel, Flooded and User(programmable)
- RS485 port with industrial standard MODBUS open architecture
-

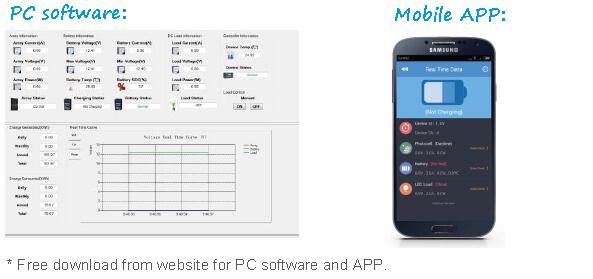

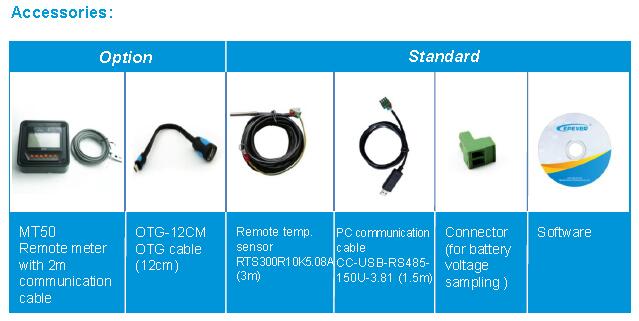

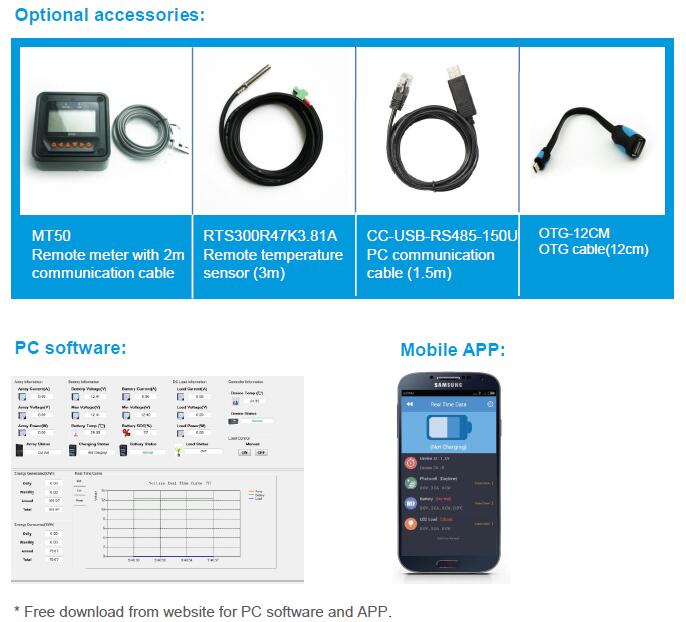

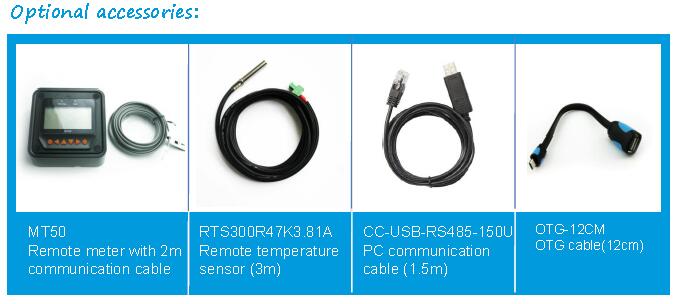

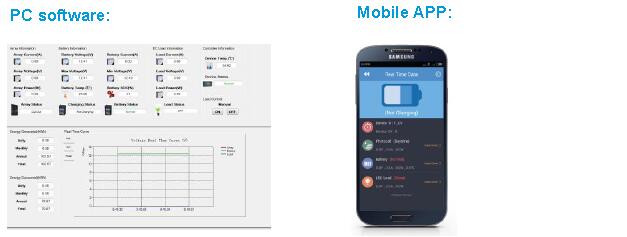

Real-time data monitoring and parameters setting with MT50, APP or PC software
-
Field upgradable firmware
SPECIFICATION DATA:

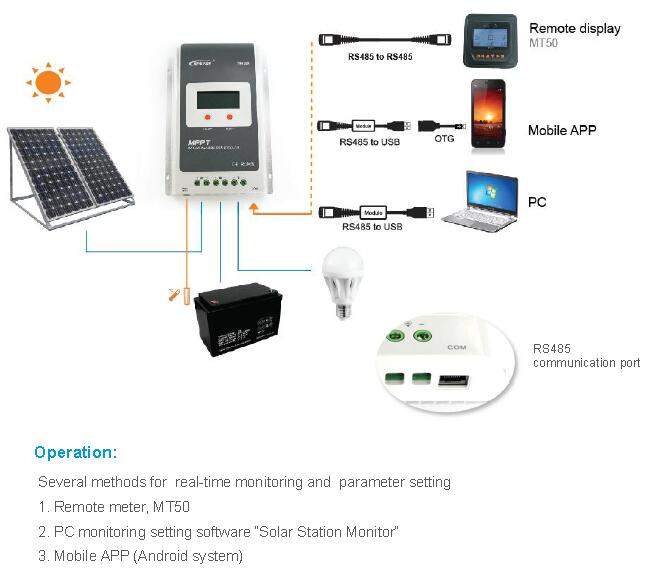

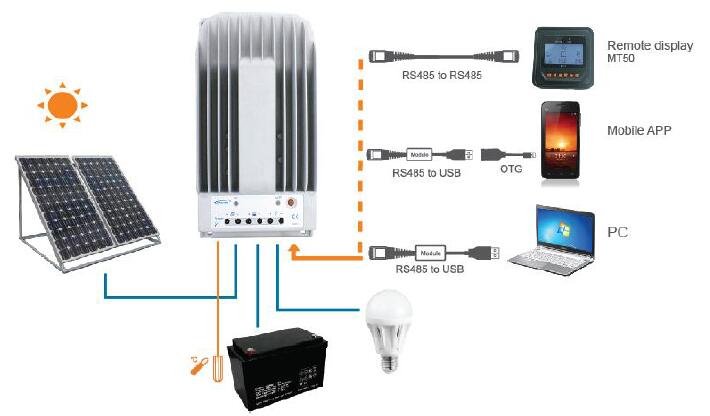

CONNECTION DIAGRAM:

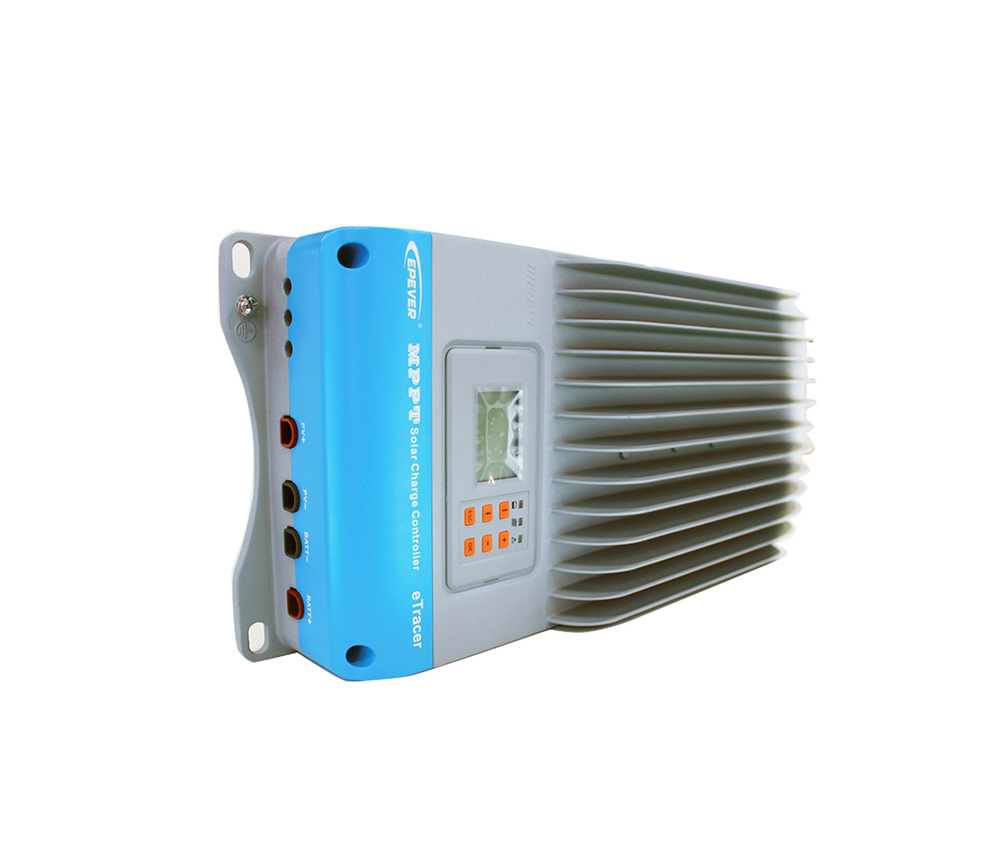

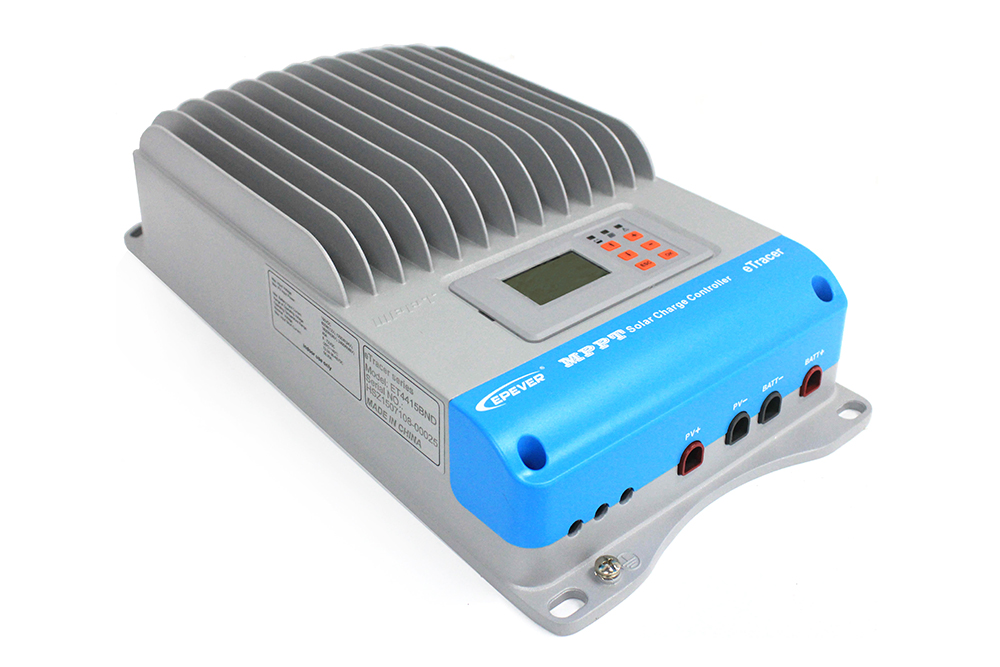

-eTRACER BND
MPPT solar charge controller
45A,60A 12/24/36/48V auto work
eTracer is an intelligent, efficient, high-speed solar charge controller with advanced Maximum Power Point Tracking (MPPT) algorithm, which can harvest the maximum power from the solar array to charge battery. It can be applied in the off-grid PV systems up to 3KW, and increase the efficiency up to 30% .
FEATURES:
- High tracking efficiency ≥ 99.5%
- Peak conversion efficiency of 98% and full load efficiency of 97%
- Accurately tracking and recognizing MPP among multiple wave crest
- Battery type selection: Sealed, Gel, Flooded and User(programmable)
- Energy statistics recording
- Built-in running data and event logging
- RS485 port with industrial standard MODBUS open architecture
- Real-time data monitoring and parameters setting with MT50, APP or PC software
- Field upgradable firmware

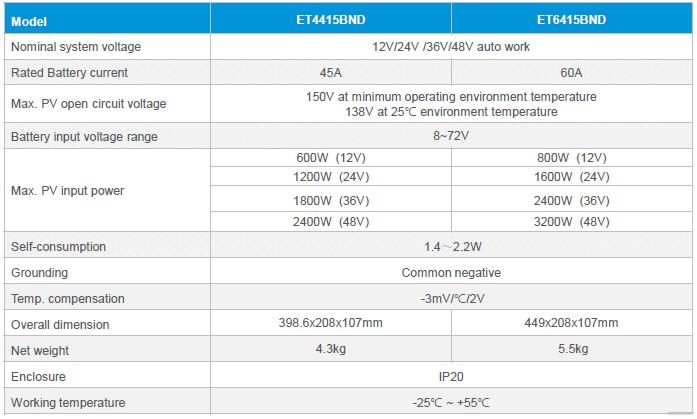

SPECIFICATION DATA:

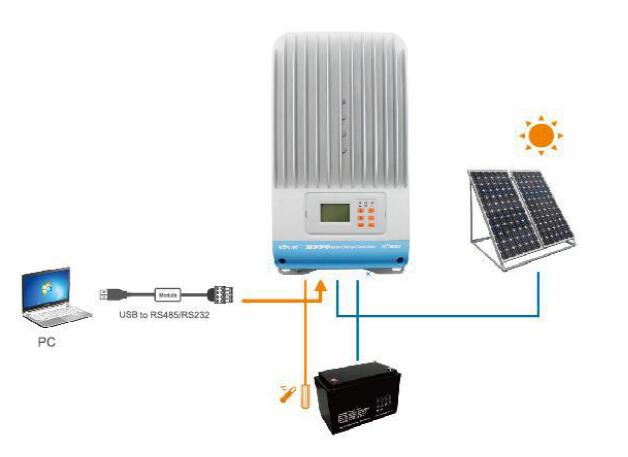

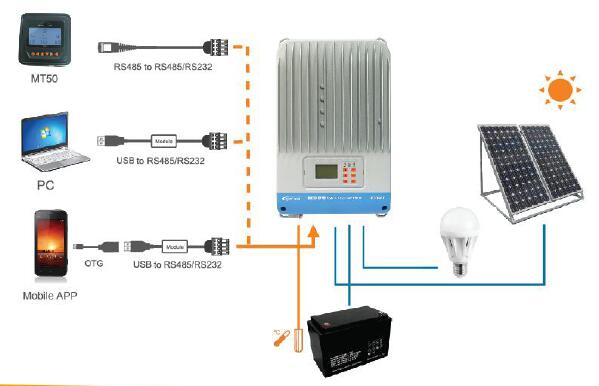

CONNECTION DIAGRAM:

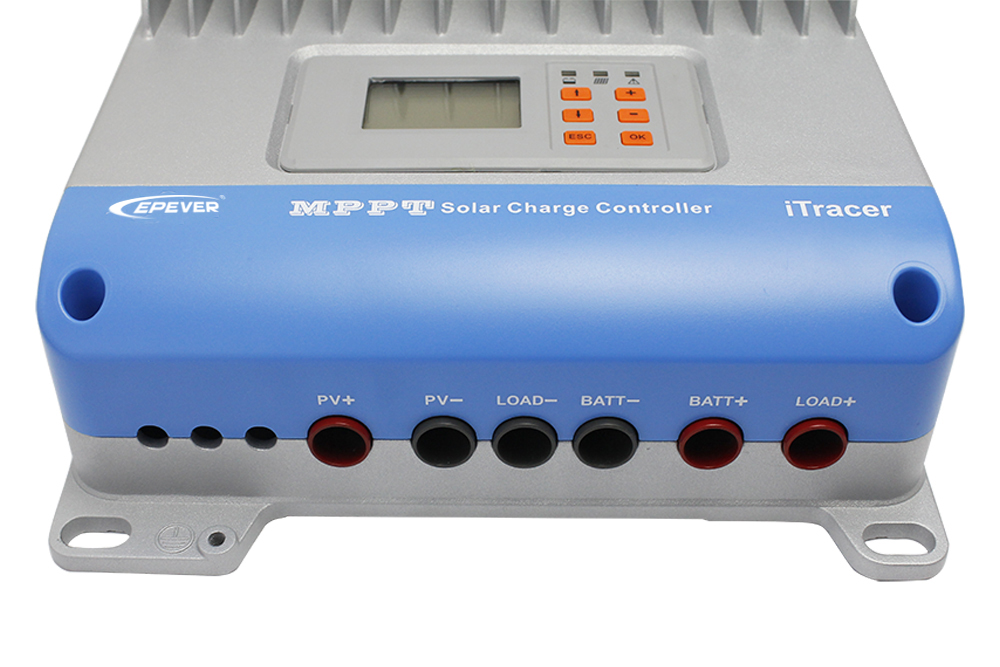

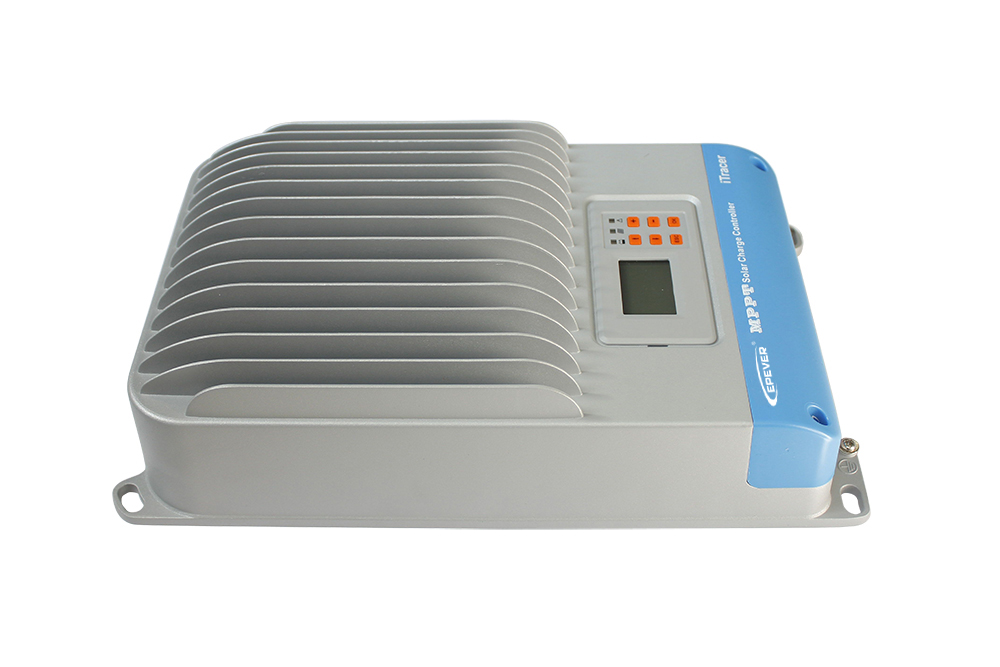

-iTRACER ND
MPPT controller with load control
30A,45A,60A 12/24/36/48V auto work
iTracer is an intelligent, efficient, high-speed solar charge controller with advanced Maximum Power Point Tracking (MPPT) algorithm, which can harvest the maximum power from the solar array to charge battery. It can be applied in the off-grid PV systems up to 3KW, and increase the efficiency up to 30% .
FEATURES:
- High tracking efficiency ≥ 99.5%
- Peak conversion efficiency of 98% and full load efficiency of 97%
- Accurately tracking and recognizing MPP among multiple wave crest
- Battery type selection: Sealed, Gel, Flooded and User(programmable)
- Multiple load control modes
- Built-in running data and event logging
- RS485 port with industrial standard MODBUS open architecture
- Real-time data monitoring and parameters setting with MT50, APP or PC software
- Field upgradable firmware

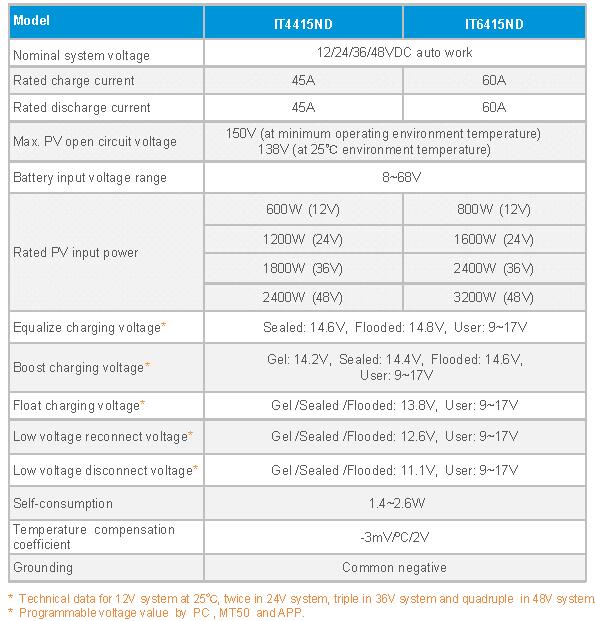

SPECIFICATION DATA:
CONNECTION DIAGRAM:

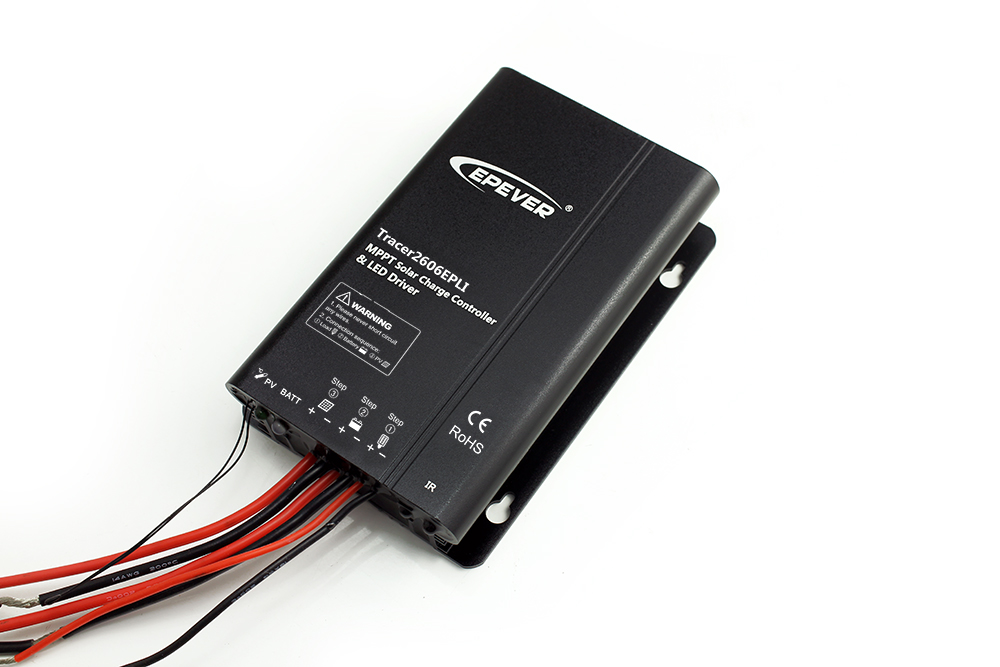

-Tracer-EPLI series
MPPT Solar Charge Controller & LED Driver

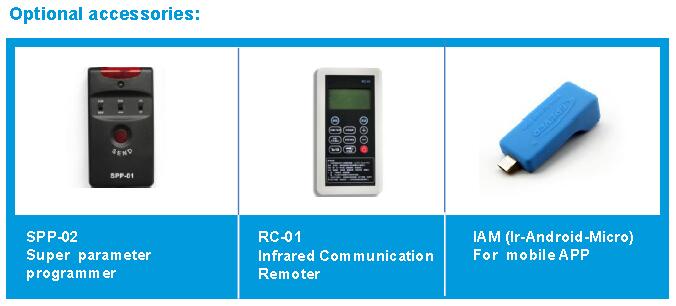

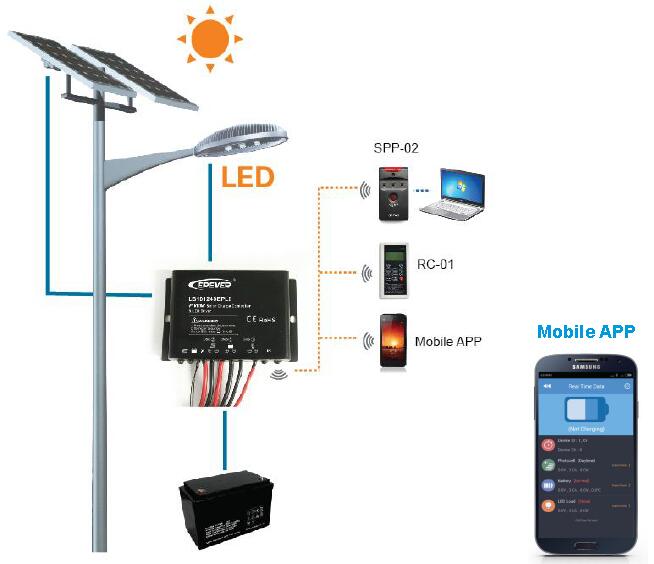

TRACER-EPLI series combines solar charge controller and LED driver into one unit. It is ideal for solar LED Lighting requiring dimmer function. The control parameter can be programmed by Mobile APP and SPP-02 via infrared(IR) communication
FEATURES:
-
High tracking efficiency ≥99.5%
-
Peak conversion efficiency of 98%
-
Ultra-fast tracking speed and guaranteed tracking efficiency
-
Accurately recognizing and tracking MPP of multiple wave crest
-
Digital precision constant current control
-
Maximum output efficiency of 96%
-
Output current adjustable
-
Flexible dimming function(0-100%)
-
Real-time energy statistics function
-
Easy to check system working status via Mobile APP

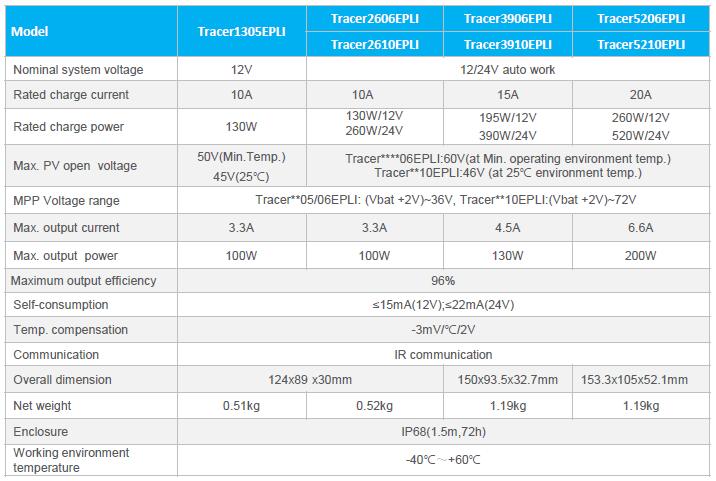

SPECIFICATION DATA:

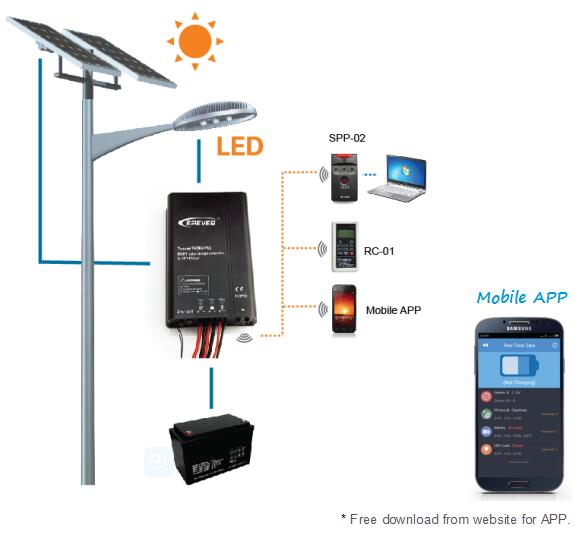

CONNECTION DIAGRAM:
PWM SERIES

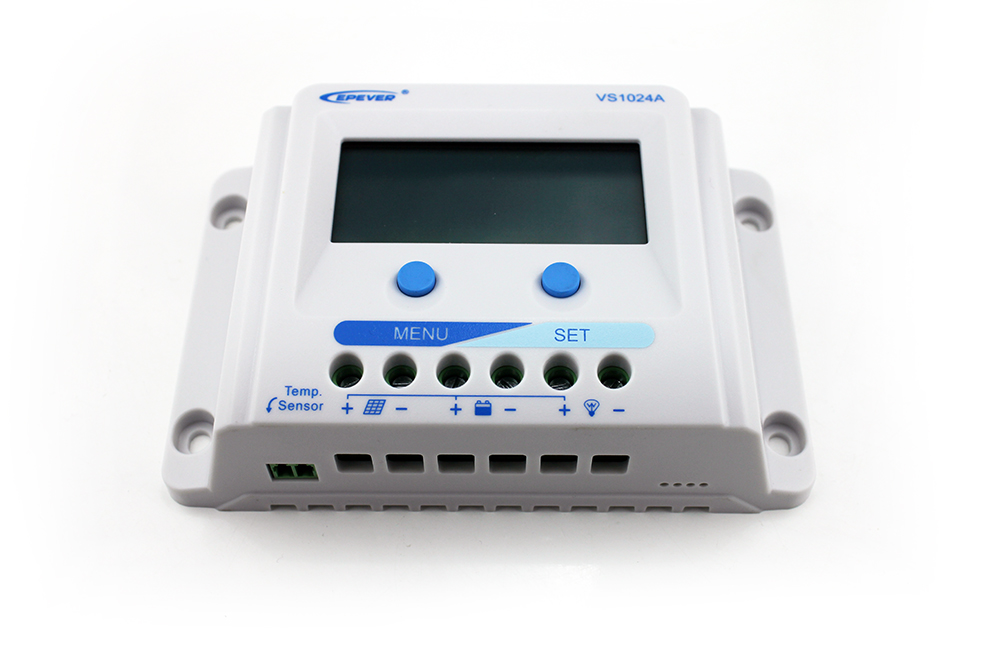

- VS-A series
PWM solar charge controller
10A,20A,30A 12/24V auto work
VS-A series is common positive controller with LCD display, adopting the most advanced digital technique, high cost performance.
FEATURE:
- PWM charging
- Battery type selection: Sealed, Gel, Flooded
- Multi-function LCD displays system information intuitively
- Multiple load control modes
- Energy statistics function

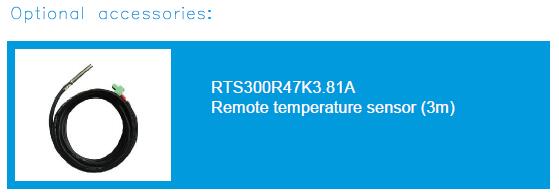

- Optional RTS for accurate temperature compensation
- Extensive electronic protection

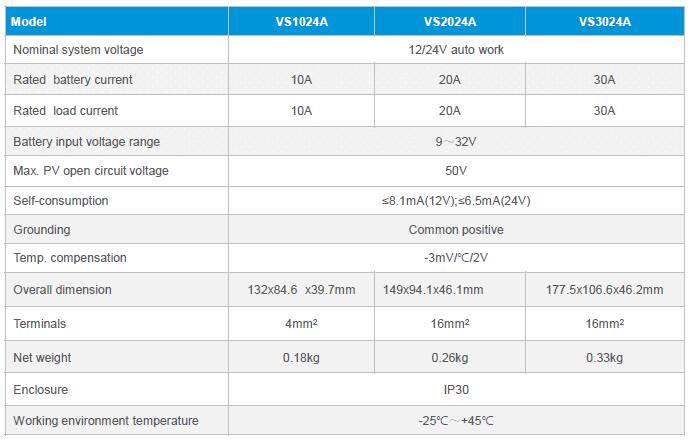

SPECIFICATION DATA:

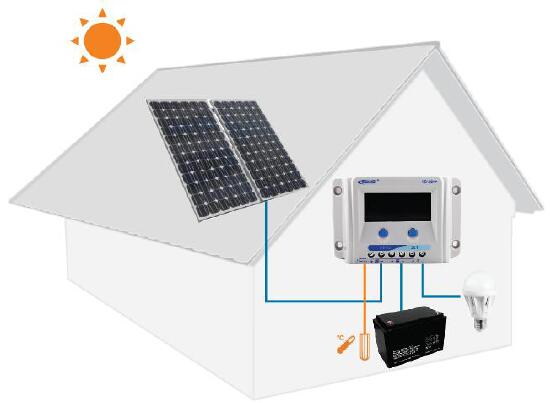

CONNECTION DIAGRAM:

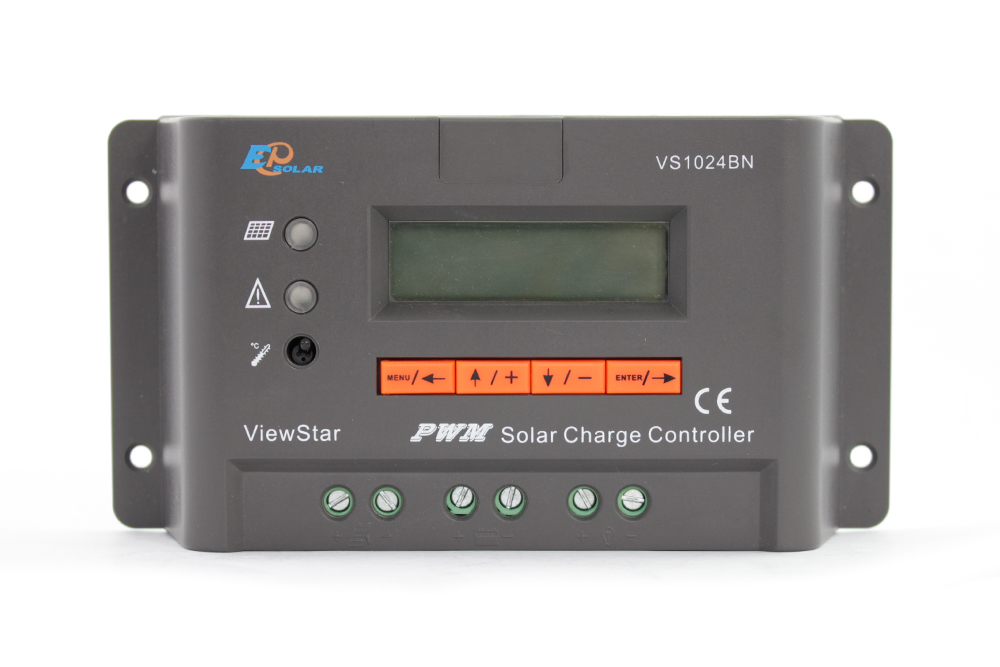

- VS-BN series
PWM solar charge controller
10A,20A,30A,45A,60A 12/24V auto work
20A,30A,45A,60A 12/24/36/48V auto work
This VS-BN series is common negative controller, with LCD display, working data programmable,
It has communication function via RS485 port to PC monitoring software, realizing real-time monitoring and battery management parameter setting.
Battery type selection: Sealed, Gel, Flooded, and User （programmable）
FEATURES:
- Intelligent lighting and timer control for solar lighting system
- Full control parameters setting and modification, diversified load control mode
- Humanized design of browser interface
- Adopt graphics dot-matrix LCD screen and 4 buttons for integrated menu displaying and operation
- Real-time energy statistics
- RS485 port with industrial standard MODBUS open architecture
- Real-time data monitoring and parameters setting with MT50, APP or PC software
- Support firmware upgrade

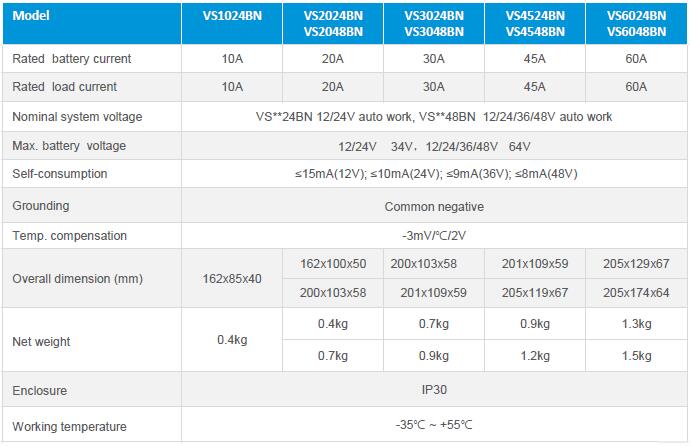

SPECIFICATION DATA:

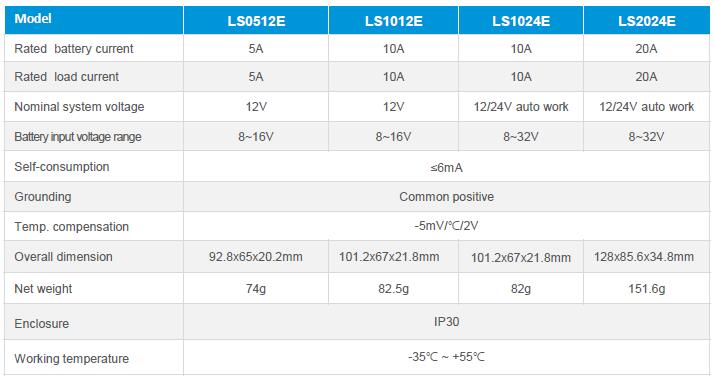

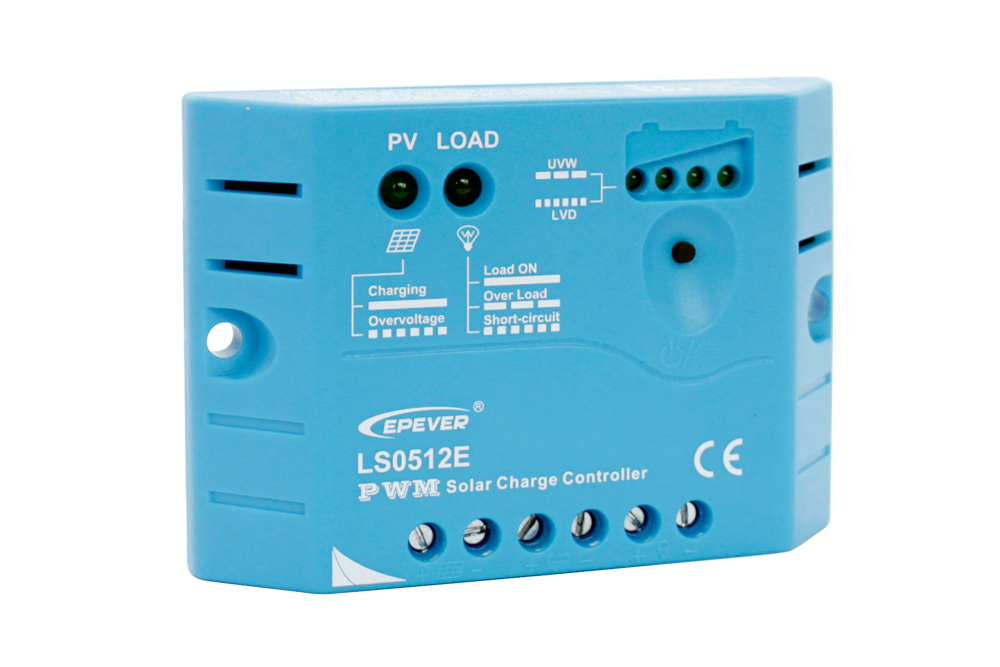

- LS-E series
LS-E series is reliable, stable, and economical solar charge controller, easy for operation.
FEATURES:
SPECIFICATION DATA:
CONNECTION DIAGRAM:

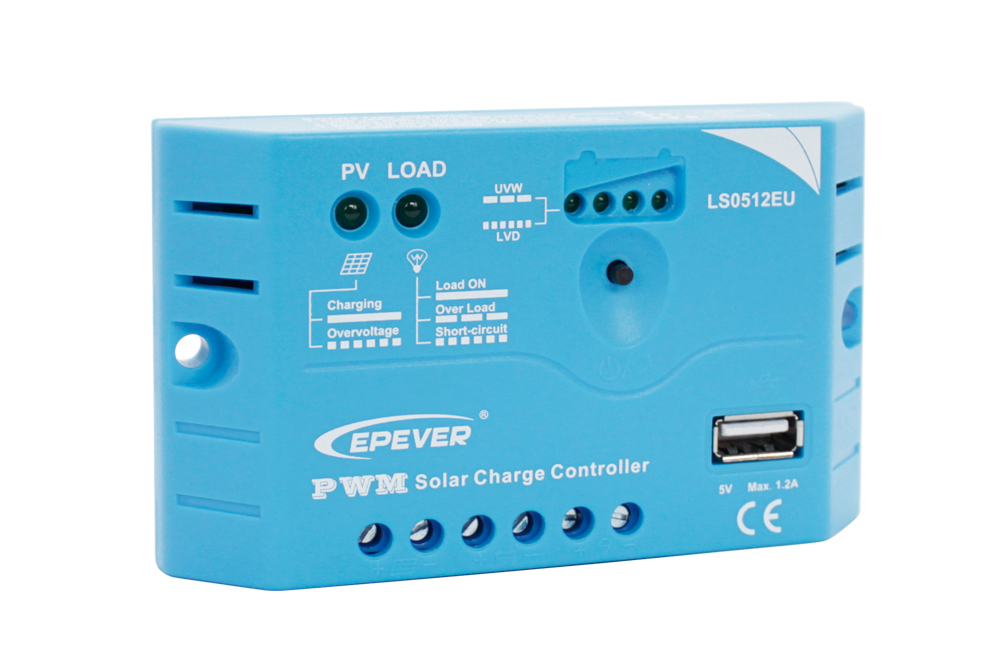

- LS-EU series (with USB Output)
PWM solar charge controller
5A,10A,20A,30A 12V/24V
LS-EU series is reliable, stable, and economical solar charge controller, easy for operation. USB output can charge mobile phone, DC fans, and other DC electronic device.
Features:
- With USB PORT
- PWM charging Use MOSFET as electronic switch
- Intuitive LED indicators showing battery voltage status
- Battery type selection: Gel, Sealed, and Flooded Manual control the output of the load
- Temperature compensation
- Industrial grade design

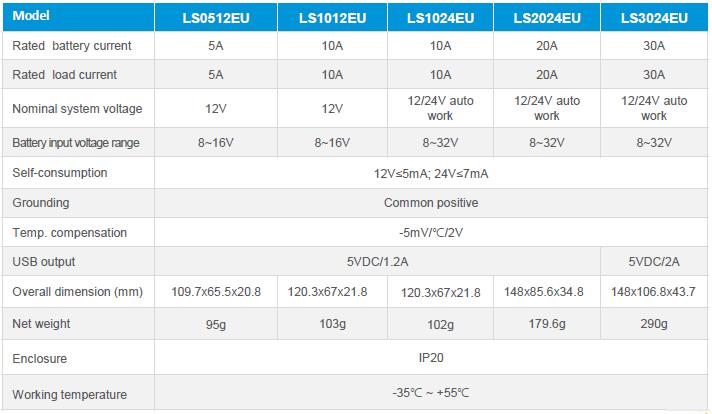

SPECIFICATION DATA:

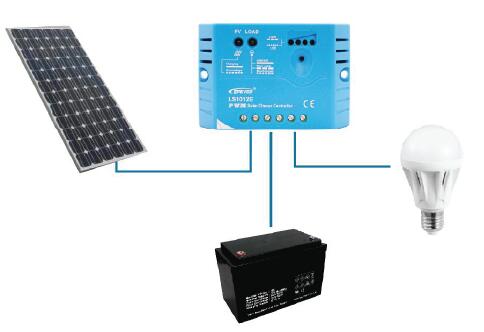

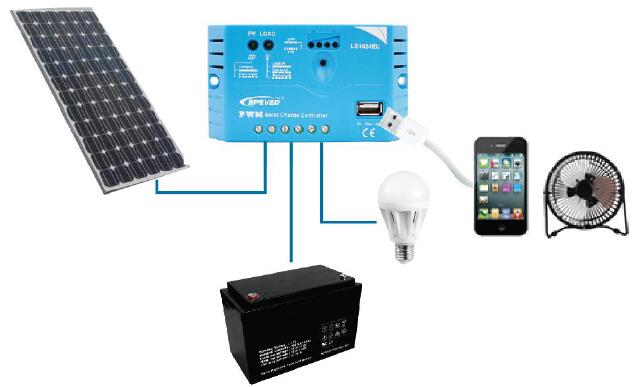

CONNECTION DIAGRAM:
PWM solar charge controller
10A,20A,30A 12/24V auto work

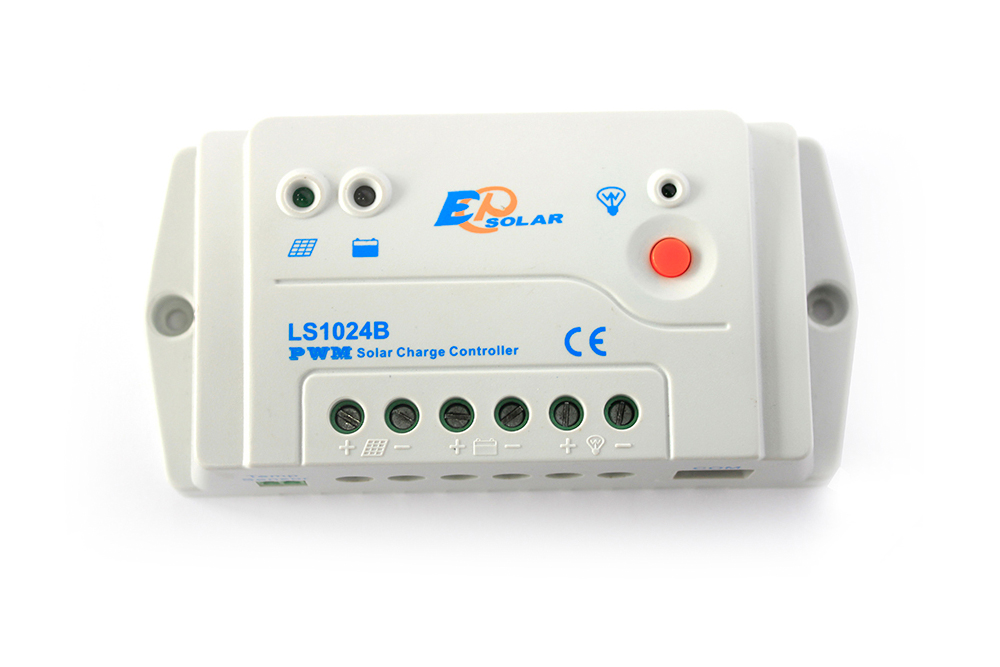

Landstar B series controller with high reliability, accuracy of sampling and full electronic protection. Programmable via remote meter MT50 ,PC software and APP.
FEATURES:
- PWM charging
- Three LEDs shows PV charging, battery and load status
- Optional RTS for accurate temperature compensation
- RS485 port with industrial standard MODBUS open architecture

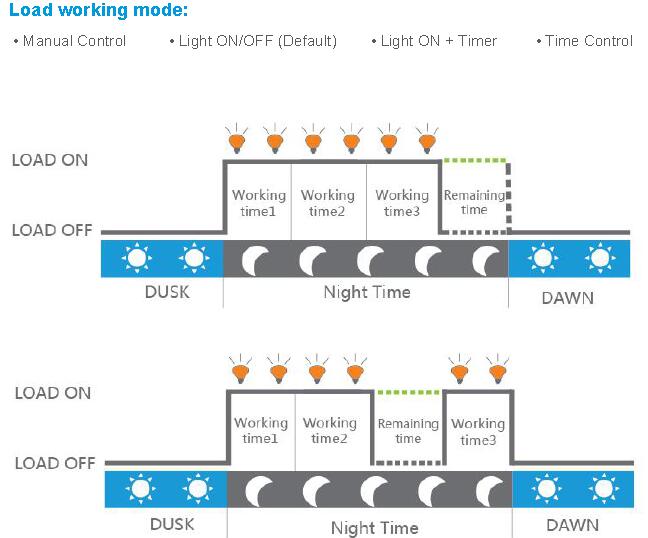

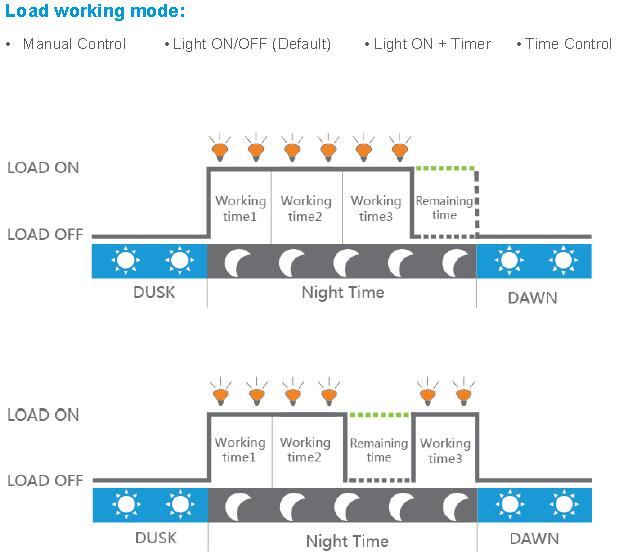

- Multiple load working modes: Manual Control, Light ON/OFF, Light On+Timer and Time Control
- Battery type selection: Sealed, Gel, Flooded and User(programmable)
- Battery temperature compensation
- Real-time energy statistics
- RS485 port with industrial standard MODBUS open architecture

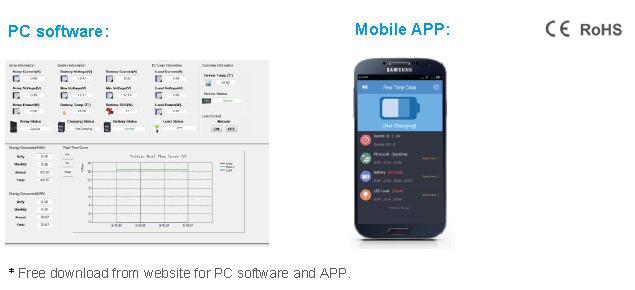

- Real-time data monitoring and parameters setting with MT50, APP or PC software
- Support firmware upgrade

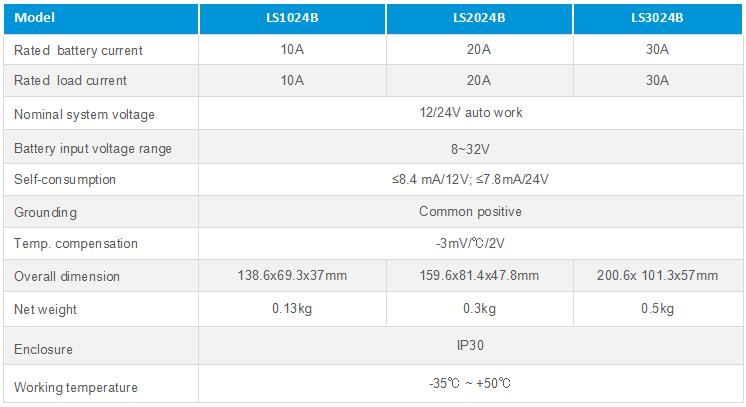

SPECIFICATION DATA:

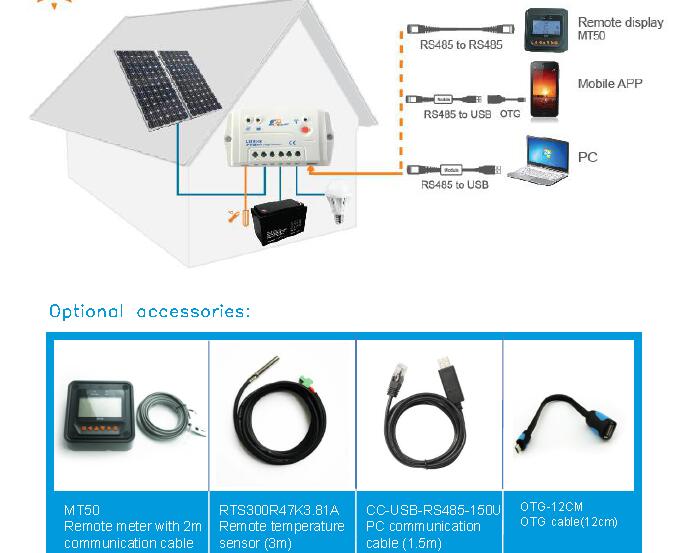

CONNECTION DIAGRAM:

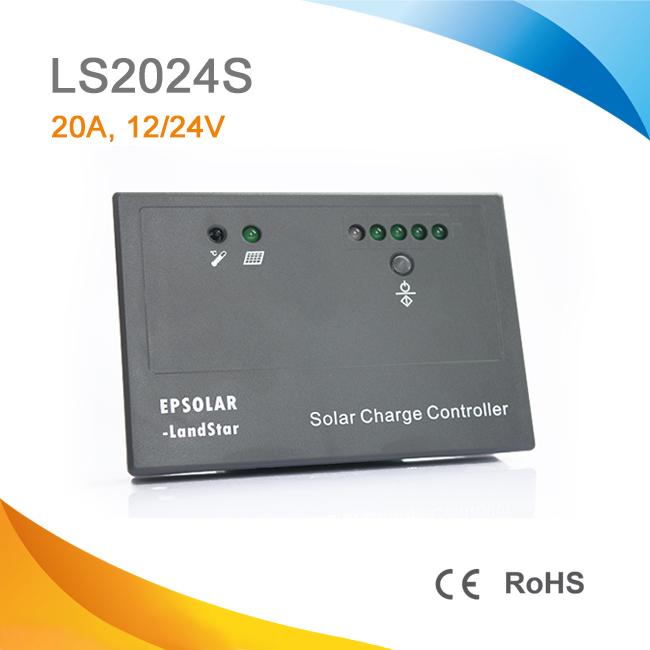

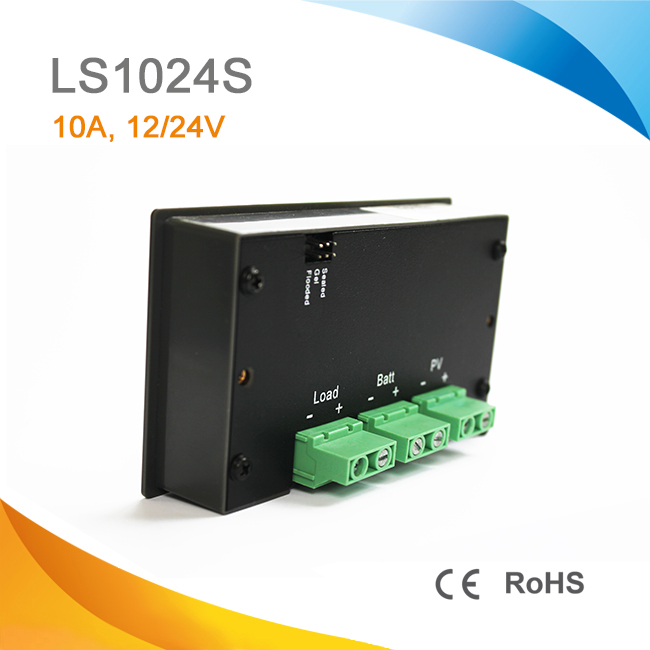

- LS-S series
PWM solar charge controller
10A,20A 12/24V auto work
Surfacing mounting, Manual ON/OFF
All the terminals backwards. Ideal for surfacing mounting solar system, such as solar home system, portable solar system.
FEATURES:
Surfacing mounting
High efficient Series PWM charging
Gel, Sealed and Flooded battery type option
Select battery type by jumper, simple and practical
LED indicator shows battery level, direct and convenient
Use MOSFET as electronic switch
Temperature compensation
Electronic protection: over charging, over discharging, overload, short circuit , and overheating
Reverse protection: any combination of solar module and battery
SPECIFICATION DATA:

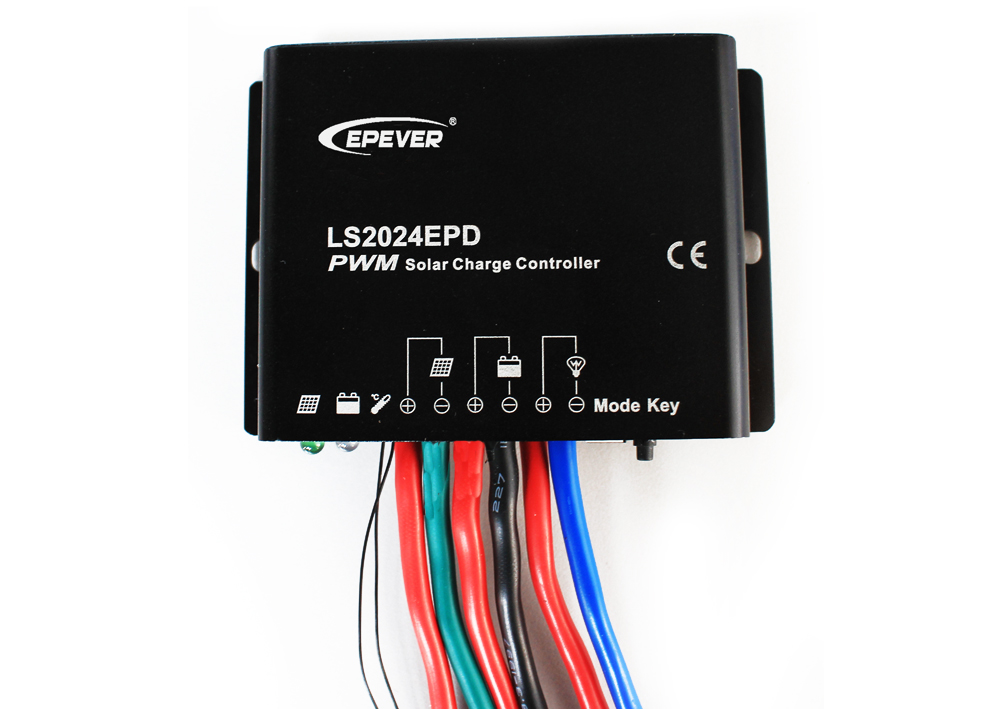

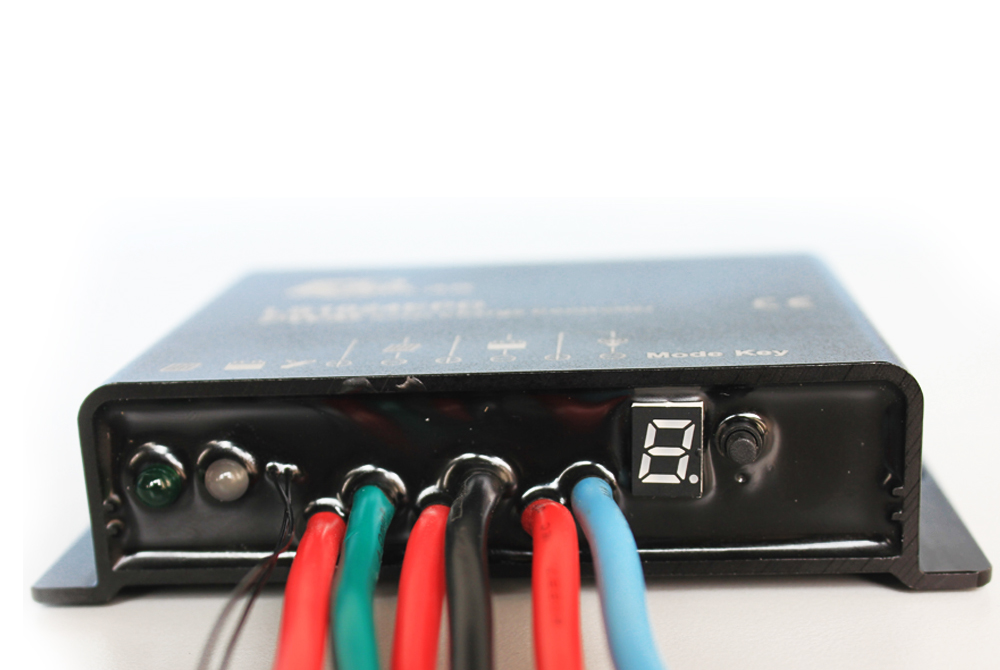

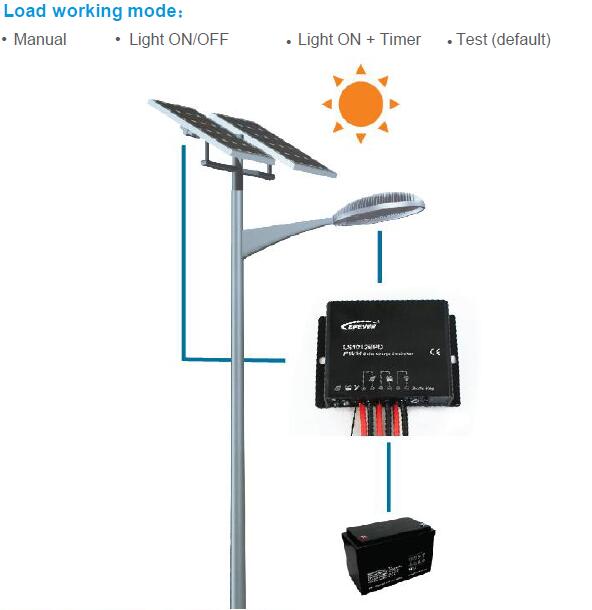

- LS-EPD series
PWM solar charge controller
10A,20A 12/24V auto work
Light and timer control, Waterproof , IP67
LS-EPD series solar charge controller is an affordable waterproof charge controller with automatic lighting control function, ideal for extreme environments with corrosion, dust, moisture etc.
FEATURES:
PWM charging
For sealed battery charging
Temperature compensation function
Automatic lighting control
LED indicators for PV and battery status
Digital tube menu, only one key solve all settings simply
Intelligent timer function with 1～13 hours option
Fully encapsulated PCB, IP67 protection

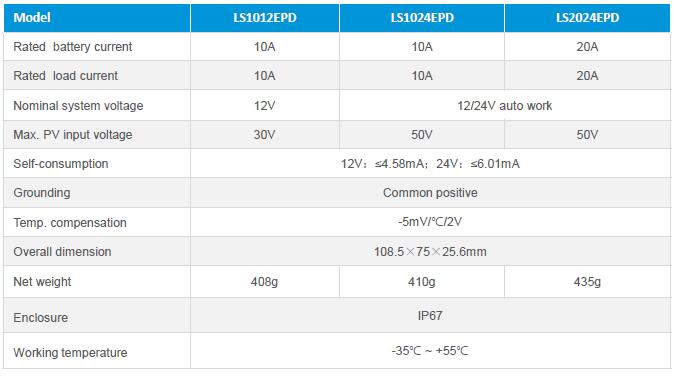

SPECIFICATION DATA:

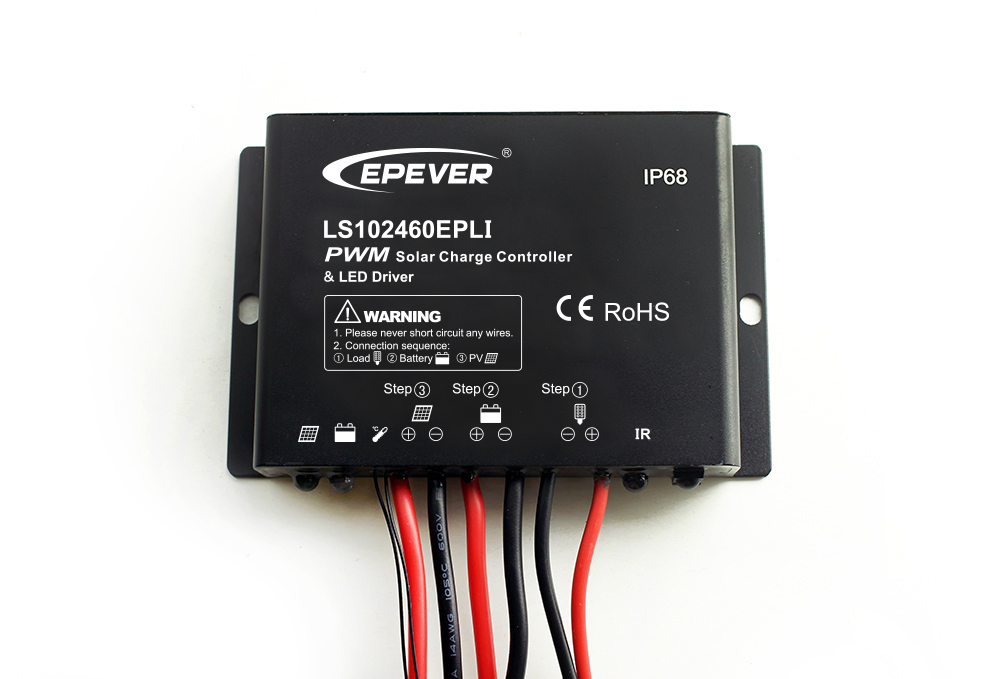

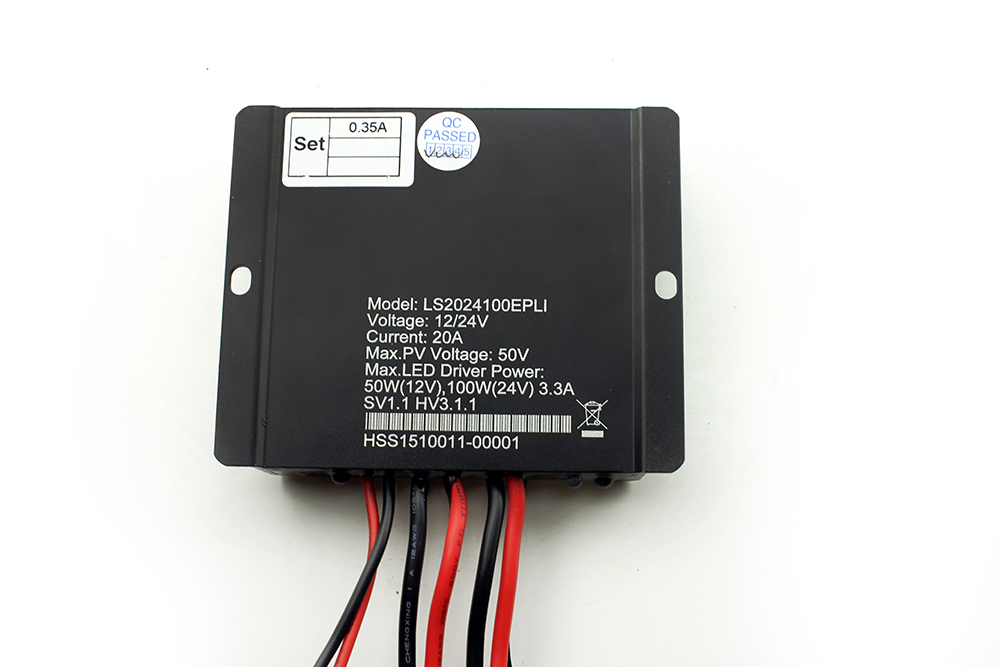

- LS-EPLI series
Solar Charge Controller & LED Driver
LS-EPLI series combines solar charge controller and LED driver into one unit. It is ideal for solar LED Lighting requireing dimmer function. The control parameter can be programmed by Mobile APP and SPP-02 via infrared(IR) communication.
FEATURES:
Battery type selection: Sealed, Gel, Flooded and User(programmable).
Maximum output efficiency of 96%
Output current adjustable
Flexible dimming function(0-100%)
Digital precision constant current control
Real-time energy statistics function
Battery temperature compensation function
Fully encapsulated PCB, IP68 protection
Aluminum housing for better cooling
Easy to check system working status via Mobile APP

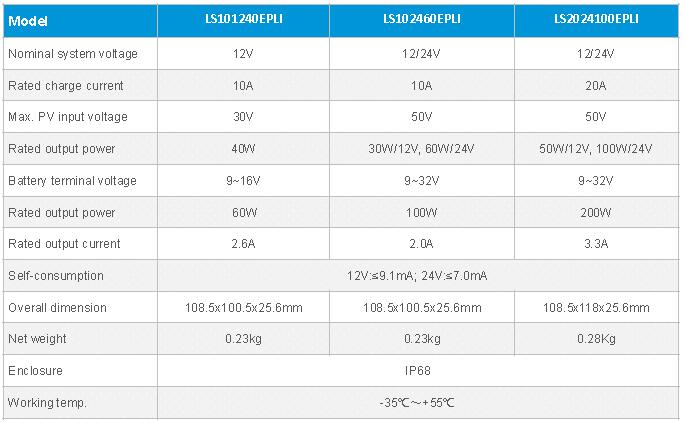

SPECIFICATION:
CONNECTION DIAGRAM:
-EP SERIES
PWM solar charge controller
--EPRC10-EC
10A,12/24V auto work
EP series is economic controller for solar home system and other small solar systems. All the electronic components are industrial grade without any mechanical switch. The electronic protections ensure the reliability of system.
FEATURES:
Intelligent System Optimum Control
12/24V auto work
High efficient Series PWM charging with temperature compensation
Use MOSFET as electronic switch, without any mechanical switch
Load and battery status indicators
Electronic protection: over charging, over discharging, overload, and short circuit

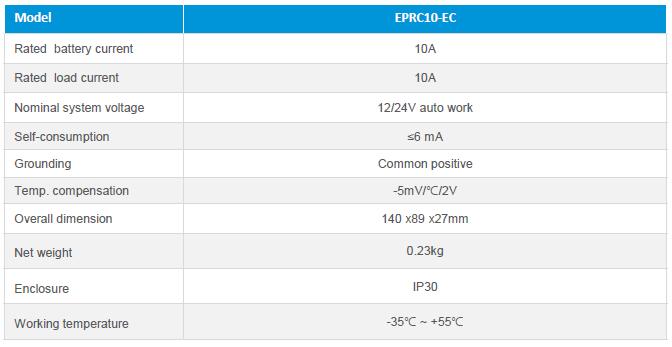

SPECIFICATION DATA:
--EPIPDB-COM
Dual battery solar controller
10A, 20A 12/24V auto work
EPIPDB-COM is dual battery charge controller for caravans, RVs, boats and golf cart etc. Two batteries charging eliminate the extra cost of two separate solar charging systems.
FEATURES:
Two battery charging eliminates the extra cost of two separate solar charging systemIntelligent System Optimum Control
12/24V auto work
Battery type selection
Charging frequency optional
High efficient Series PWM charging
Local external temperature compensation
Remote temperature sensor optional
Use MOSFET as electronic switch, without any mechanical switch
Remote meter MT-1 optional
Electronic protection: over charging, short circuit, battery reverse polarity protection

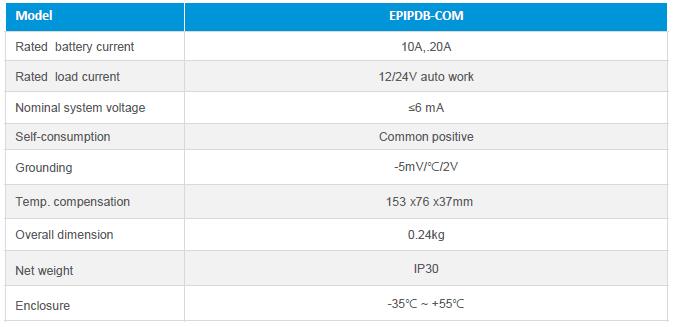

SPECIFICATION DATA:
CLICK HERE TO DOWNLOAD FULL CATALOGUE FOR SINOLTECH SOLAR CONTROLLER PRODUCTS.
