TRACER-BN MPPT太阳能控制器
- 产品编号：TRACER1215BN/2215BN/3215BN/4215BN
- 产品价格：
- 产品描述：MPPT Techcnology; High tracking efficiency≥ 99.5%; Peak conversion efficiency of 98%; Ultra-fast tracking speed; Reliable automatic PV current limiting function;Wide MPP operating voltage range.
Tracer-BN series
MPPT Solar charge controller
Tracer-BN Series is a flagship member among all tracer MPPT controllers. We design with very long lifespan industrial materials and die-cast aluminum housing cooling system, to improve the controller's performance and life. To meet different projects and applications, we built-in RS485 bus interface, with Modbus communication protocol, easy for communication extension with other devices. The optional programmable ability make the controllers work with different batteries, control your DC load remotely on/off by manual, timer, light and etc. Especially, the current limiting function gives you more flexibility for solar PV array.

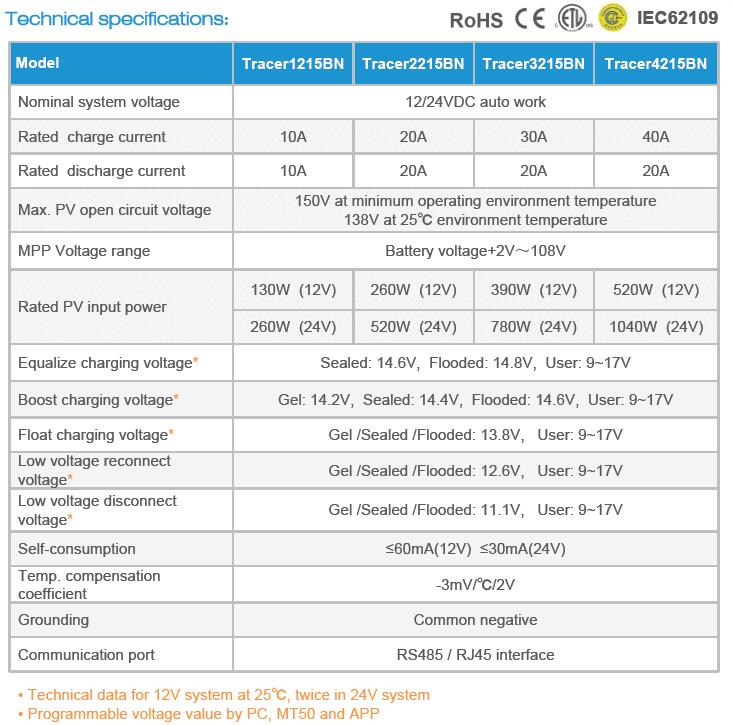

Models:
Tracer1215BN, 10A, 12/24V auto work
Tracer2215BN, 20A, 12/24V auto work
Tracer3215BN, 30A, 12/24V auto work
Tracer4215BN, 40A, 12/24V auto work
Features:
1. Advanced Maximum Power Point Tracking (MPPT) technology
2. High tracking efficiency ≥ 99.5%

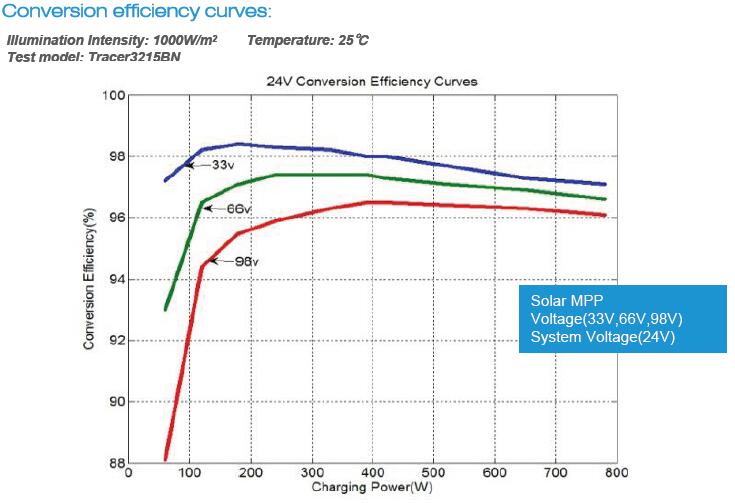

3. Peak conversion efficiency of 98%
4. Ultra-fast tracking speed
5. Accurately tracking and recognizing MPP among multiple wave crest
6. Reliable automatic PV current limiting function
7. Wide MPP operating voltage range

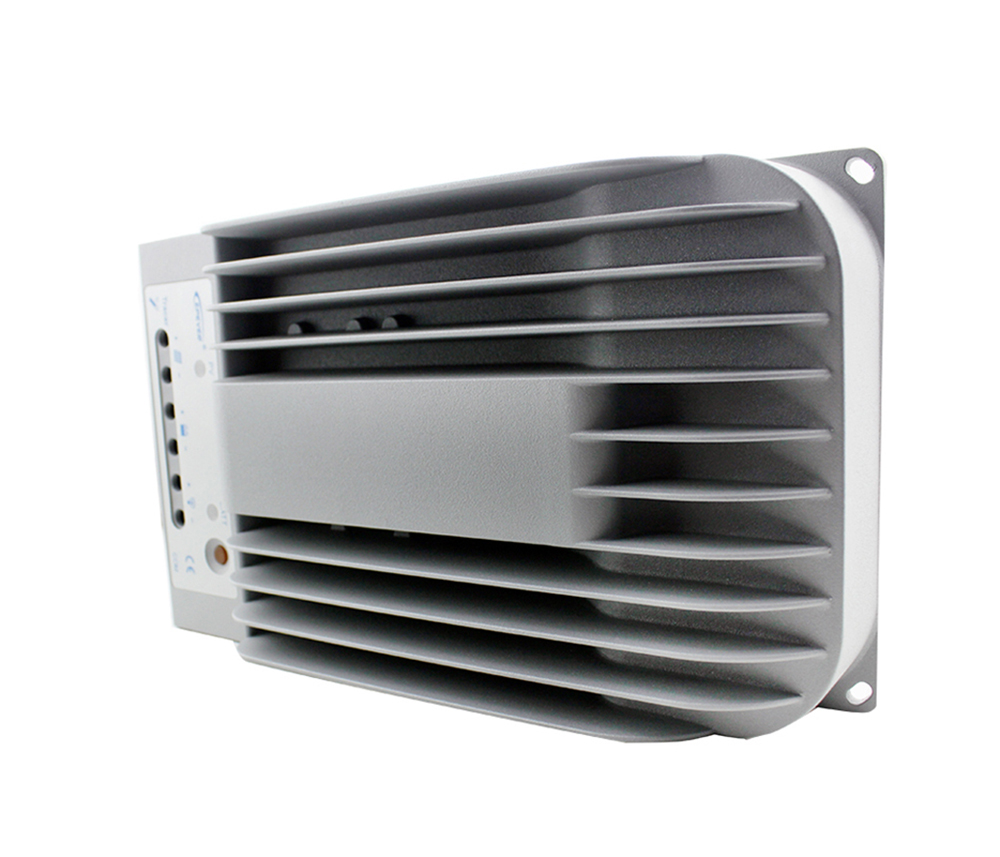

8. Die-cast aluminum design, ensuring excellent heat dissipation
9. Multiple load working modes: Manual Control, Light ON/OFF, Light On+Timer and Time Control
10. Battery type selection: Sealed, Gel, Flooded and User(programmable)
11. Battery temperature compensation
12. Real-time energy statistics
13. RS485 port with industrial standard MODBUS open architecture

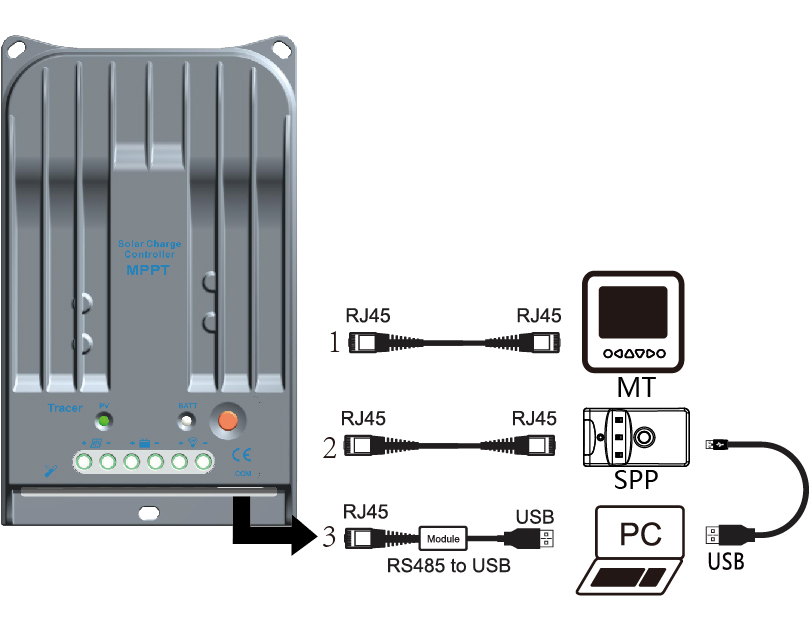

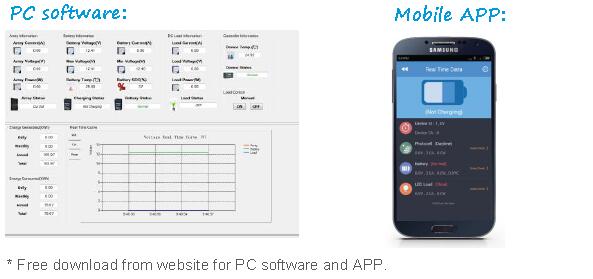

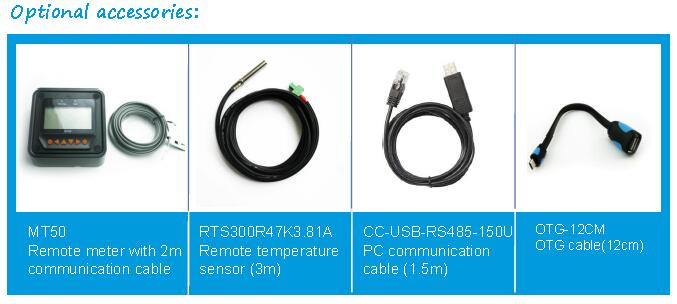

14. Real-time data monitoring and parameters setting with MT50, APP or PC software
15. Support firmware upgrade
Electronic protections:
● PV over current protection ● PV short circuit protection
● PV reverse polarity protection ● Battery over voltage protection
● Battery over discharge protection ● Battery reverse polarity protection
● Battery overheating protection ● Load overload protection
● Load short circuit protection ● Controller overheating protection

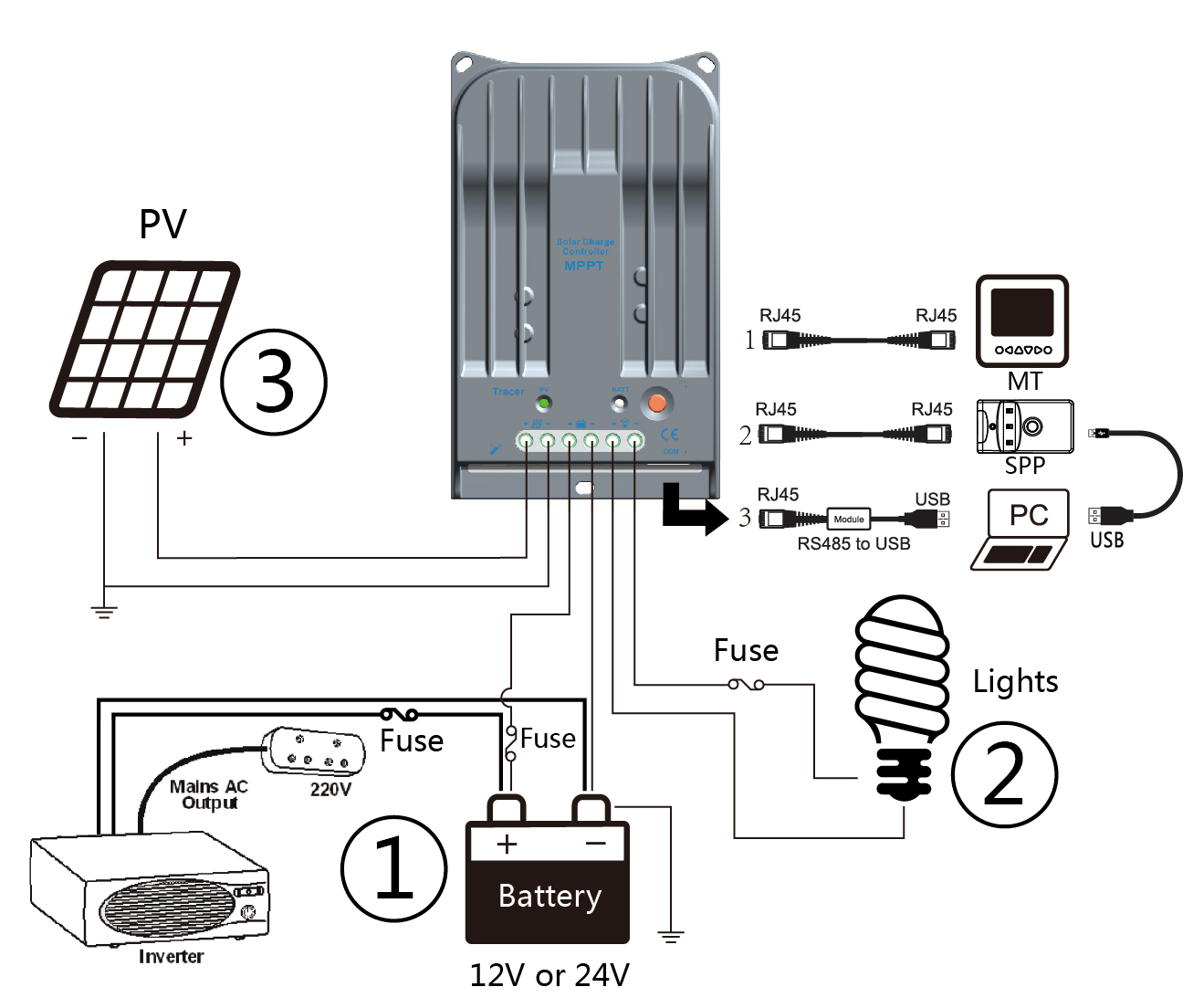

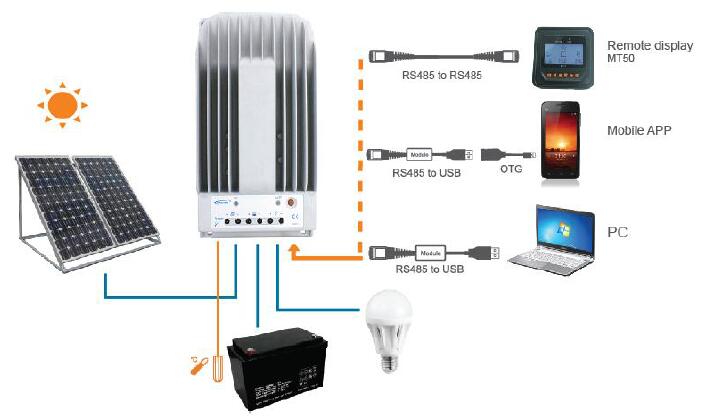

CONNECTION DIAGRAM:
